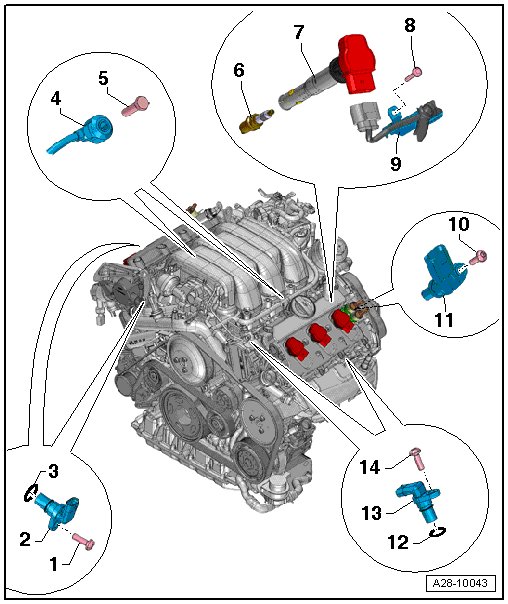

Ignition Overview

Ignition Overview






1 Bolt

• 9 Nm

2 Camshaft Position Sensor

• Cylinder bank 1 (right)

• Intake side camshaft position sensor (G40)

• Camshaft position sensor, removing and installing, intake side, refer to => [ Camshaft Position Sensor (G40)/(G163), Intake Side ] Camshaft Position Sensor (G40)/(G163), Intake Side.

• Exhaust side camshaft position sensor 3 (G300)

• Camshaft position sensor, removing and installing, exhaust side, refer to => [ Camshaft Position Sensor (G300)/(G301), Exhaust Side ] Camshaft Position Sensor (G300)/(G301), Exhaust Side.

3 O-ring

• Replace

4 Knock Sensor

• Cylinder bank 1 (right) knock sensor 1 (G61) (right),

• Cylinder bank 2 (left) knock sensor 2 (G66)

• Removing and installing, refer to => [ Knock Sensors (G61)/(G66) ] Service and Repair

5 Bolt

• 25 Nm

6 Spark Plug

• Change interval.

7 Ignition Coil

• Removing and installing, refer to => [ Ignition Coils with Power Output Stages ] Service and Repair

8 Bolt

• 5 Nm

9 Wiring Harness

10 Bolt

• 9 Nm

11 Engine Speed (RPM) Sensor (G28)

• Removing and installing, refer to => [ Engine Speed Sensor (G28) ] Service and Repair

12 O-ring

• Replace

13 Camshaft Position Sensor

• Cylinder bank 2 (left)

• Intake side camshaft position sensor 2 (G163)

• Camshaft position sensor, removing and installing, intake side, refer to => [ Camshaft Position Sensor (G40)/(G163), Intake Side ] Camshaft Position Sensor (G40)/(G163), Intake Side

• Exhaust side camshaft position sensor 4 (G301)

• Camshaft position sensor, removing and installing, exhaust side, refer to => [ Camshaft Position Sensor (G300)/(G301), Exhaust Side ] Camshaft Position Sensor (G300)/(G301), Exhaust Side

14 Bolt

• 9 Nm
