Control Modules






Control Modules

Component location: Behind glove compartment at carrier for instrument panel.

Removing

- If control module is replaced, select guided functions of respective control module in.

- Remove glove compartment.

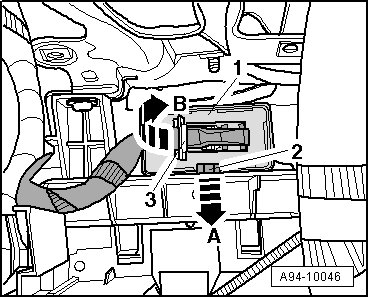

- Press the clip - 2 - to the side - arrow A - and remove the control module - 1 - form the frame.





- Disconnect electrical harness connector, to do so press catch - 3 - and turn retaining bracket in - arrow B -.

Installing

Install in reverse order of removal, observing the following:

- Install glove compartment.
