Right Instrument Panel Fuse Panel, Removing and Installing







Right Instrument Panel Fuse Panel, Removing and Installing

Removing





- With ignition switched off, disconnect battery Ground (ND) wire => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove glove compartment.

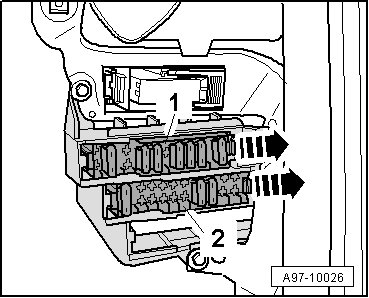

- Release retaining springs - arrows - and press fuse panels - 1 - and - 2 - toward rear out of base mount.

- Unlock the release and remove from the fuse carrier, if equipped.





- Remove fuses on fuse panel.

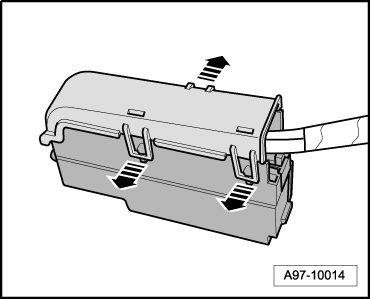

- Release clips - arrows - and remove cover from fuse panel.

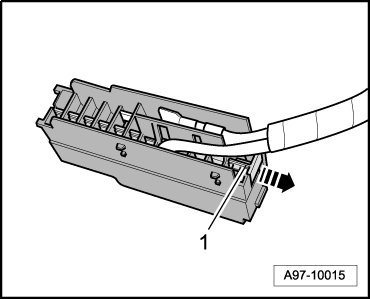

- Pull off retaining strip - 1 - for harness connectors - arrow - and remove harness connectors from connector socket.





• For the exact assignment of right instrument panel fuse panel refer to the current wiring diagram.

Installing

Install in reverse order of removal, observing the following:

- Install glove compartment.

- Connect battery. Required actions => [ Vehicles with : ] Battery, Disconnecting and Connecting.
