Transmission, Transporting






Transmission, Transporting

Special tools, testers and auxiliary items required

• Shop Crane (VAS 6100)

• Transmission Lift Hook (T40013)

Procedure

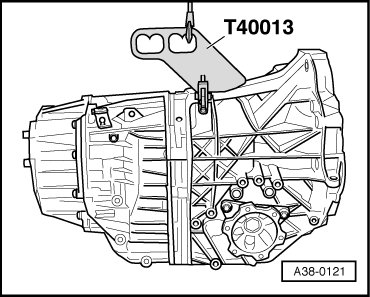

- Attach and secure the (T40013) to the upper rib on the transmission housing.





- Connect the (VAS 6100) hook into the mount on the (T40013) as illustrated.

- Lift transmission with (VAS 6100) and (T40013).
