Left/Right Rear Window Switch







Left/Right Rear Window Switch

Removing

- Switch off ignition and remove ignition key.

- Remove rear door trim.

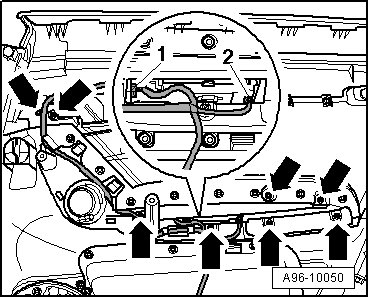

- Remove bolts - arrows -.





- Disconnect electrical harness connector - 1 - for window regulator switch and for ashtray illumination - 2 -.

- Remove armrest at door trim.

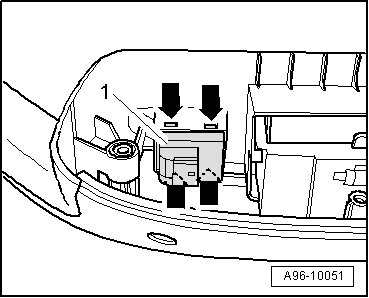

- Carefully release catches - arrows - using a small screwdriver.





- Pull rear window switch - 1 - downward out of switch mount.

Installing

Install in reverse order of removal, observing the following:

- Press switch into switch mount until fasteners engage.

- Install rear door trim.

Tightening Specifications
