Fuse Carrier On Vehicle Electrical System Control Module -J519-






Fuses

Fuse Carrier on Vehicle Electrical System Control Module -J519-

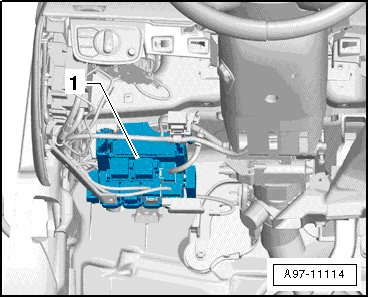

Component Location, left-hand drive:







Behind driver's instrument panel -1-

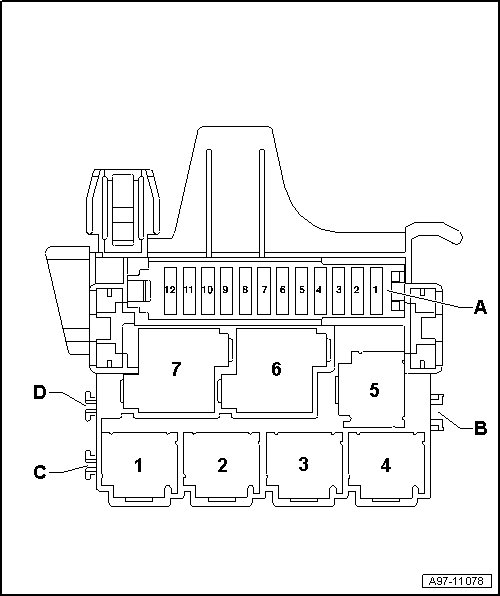

A - Not used

B - Driver's Power Seat Adjustment Circuit Breaker 1 -S44- ,15 A

C - Not used

D - Not used

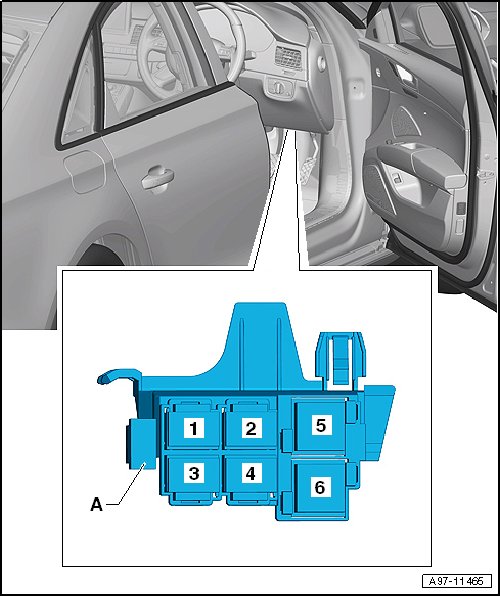

Component Location, right-hand drive:


Behind driver's instrument panel
Fuse Colors
40 A - orange
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A - beige





A - Driver's Power Seat Adjustment Circuit Breaker 1 -S44- ,15 A
