Communications Control Module: Locations

Control modules in interior and rear part of vehicle

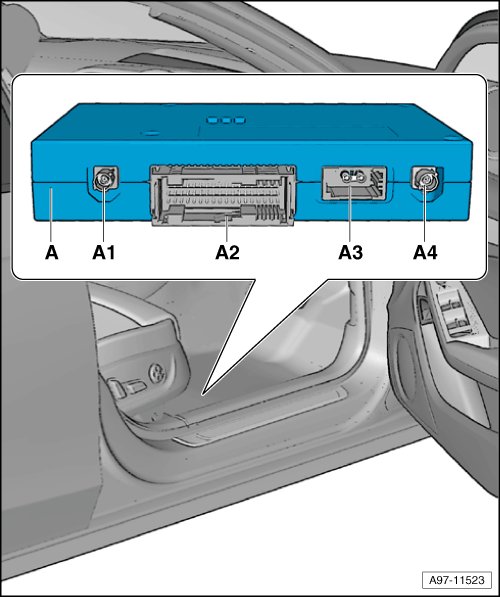

Telephone Transceiver -R36-

Component Location:
In front right footwell.

A - Telephone Transceiver -R36-

A1 - Connector -B- (Bluetooth Antenna)

A2 - 54-Pin Connector -T54a-

A3 - Connector -C- (Fiber Optic Conductor )

A4 - Connector -D- (Telephone Antenna)
