Relay / Fuse Panel w/ Vehicle Electrical System Control Module -J519-







Fuses

Relay / fuse panel with Vehicle Electrical System Control Module -J519-

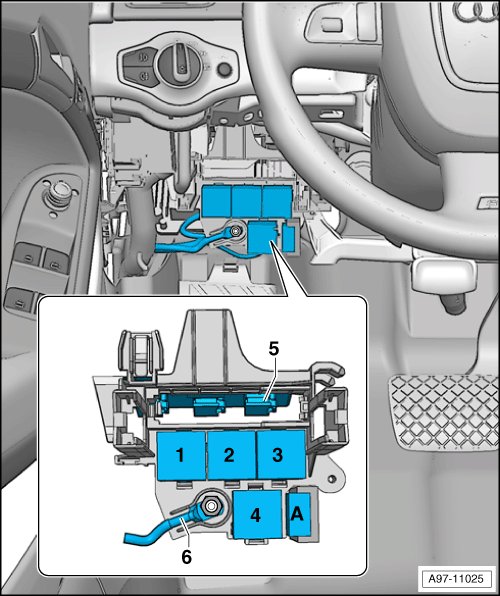

Component Location Relay / Fuse panel with Vehicle Electrical System Control Module -J519- for models with left-hand drive:
Below driver's instrument panel
1) Only models with left-hand drive, models with right-hand drive => [ ] 6-Pin Connector Station A-pillar, Front Pass Side

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .






A - ABS Control Module Fuse 1 -S123- (1), 40 A

Component Location Relay / Fuse panel with Vehicle Electrical System Control Module -J519- for models with right-hand drive:
Below driver's instrument panel
2) Only models with right-hand drive, with left-hand drive => [ 6-Pin connector station A-pillar, front passenger's side ] 6-Pin Connector Station A-pillar, Front Pass Side

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive .






A - Fuse Terminal 30, Trailer Operation -S77- (2), 30 A
