Control Module: Testing and Inspection

For legend and connector notes refer to "Automatic Transmission/Transaxle : Relays and Modules : Control Module,A/T : Diagrams:. Connector Views

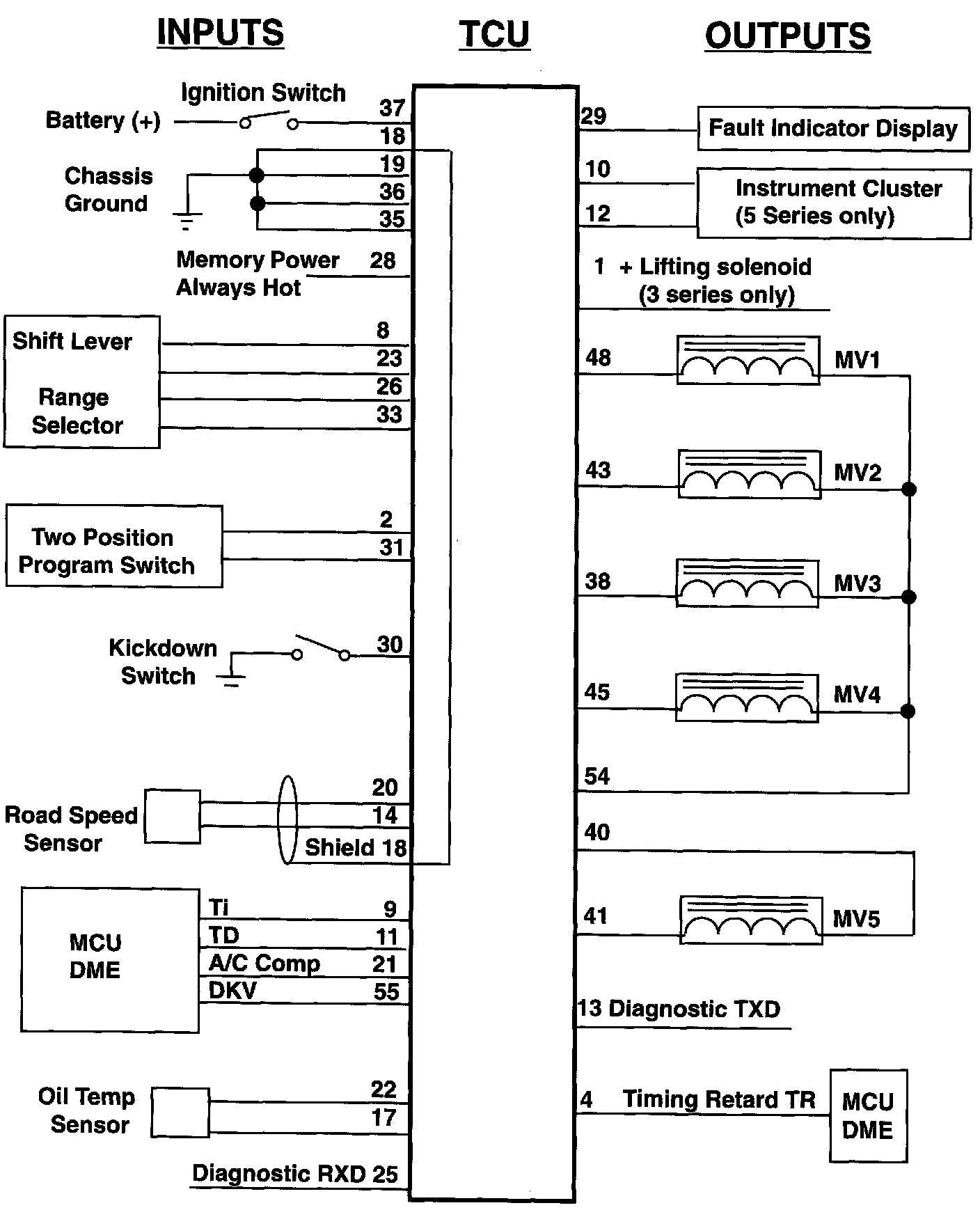

Input/Output Circuit Diagram

Test Measurements

Grounds - Ohms

Grounds - Volts

Battery Supply

Shift Lever Range Selector
3 Series - *
5 Series - **

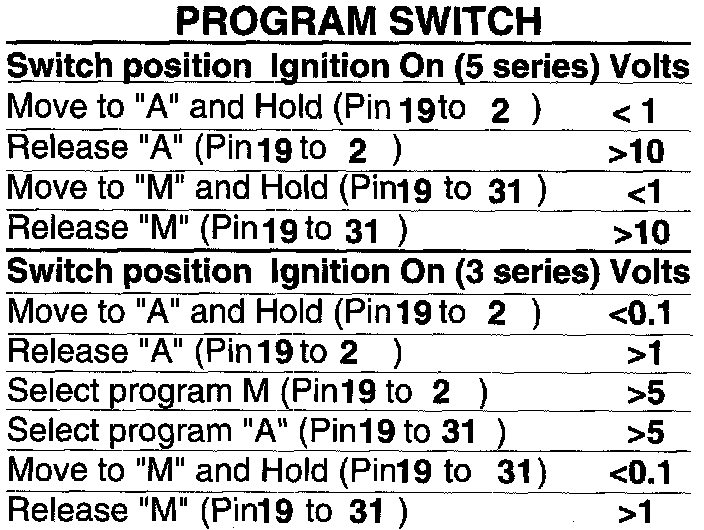

Program Switch

Kicdown Switch

Processed Throttle Sognal

Shift Solenoid Control

Lock Up Solenoid Activation

A/C Compressor Load Signal

Fault Indicator Display

Pressure Regulator

Band Apply Solenoid

Ti Signal

TD Signal

Engine Intervention/Timing Retard

Reverse Gear Lockout

Instrument Cluster

Road Speed Signal

Diagnostic Link

Park/Neutral Shift Lock

Road Speed Signal Shield

Oil Temperature Sensor

Solenoid Valves
