Throttle Position Control Module (EML)

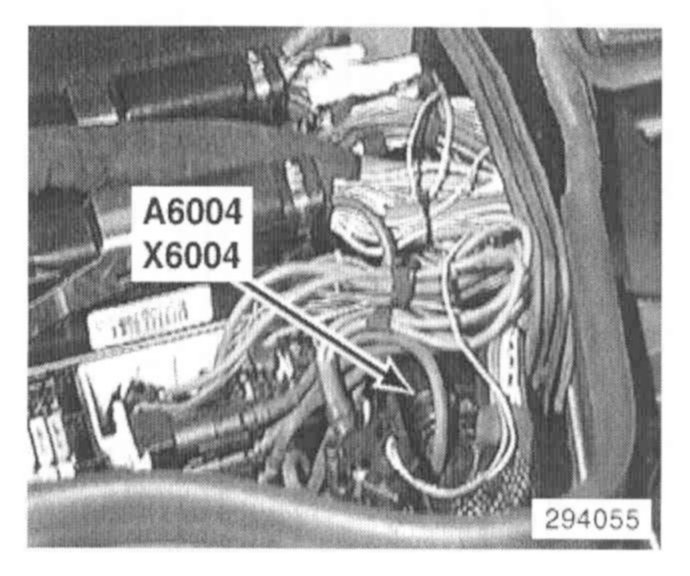

Component / Connector View: A6004, X6004:

Component ID A6004, Throttle Position Control Module (EML)
Connector ID X6004, Connector (88 Pin, Natural)
Location Rear RH Side Of Engine Compartment In E-Box
