Engine Control Module Relay II

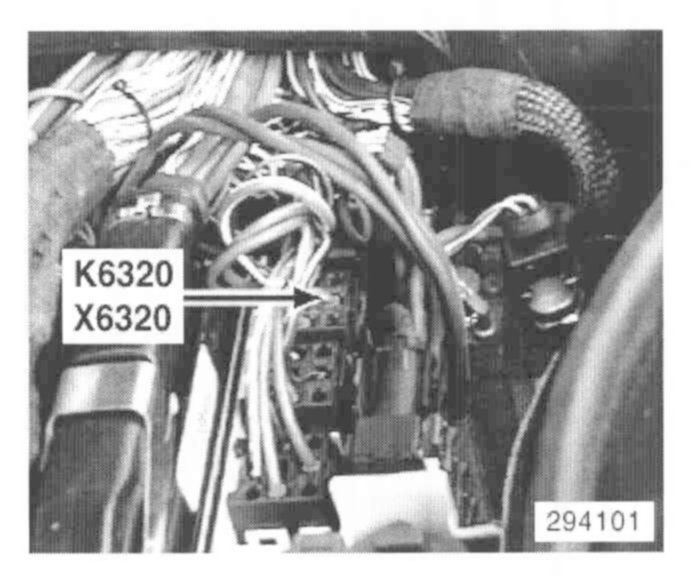

Component / Connector View: K6320, X6320:

Component ID K6320, Engine Control Module Relay II
Connector ID X6320, Connector (9 Pin, Black)
Location Rear RH Side Of Engine Compartment In E-Box
