Air Flow Meter/Sensor: Locations

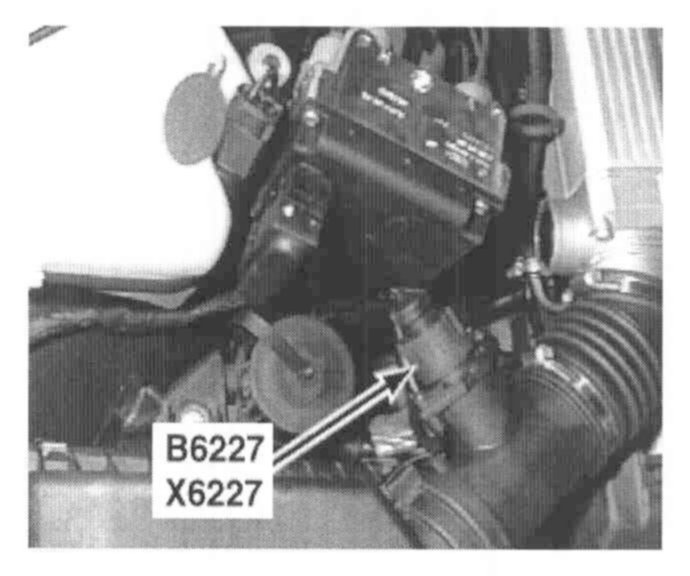

Component / Connector View: B6227, X6227:
Component ID B6227, Hot-Film Mass Air Flow Sensor
Connector ID X6227, Connector (4 Pin, Gray)
Location Front Of Engine

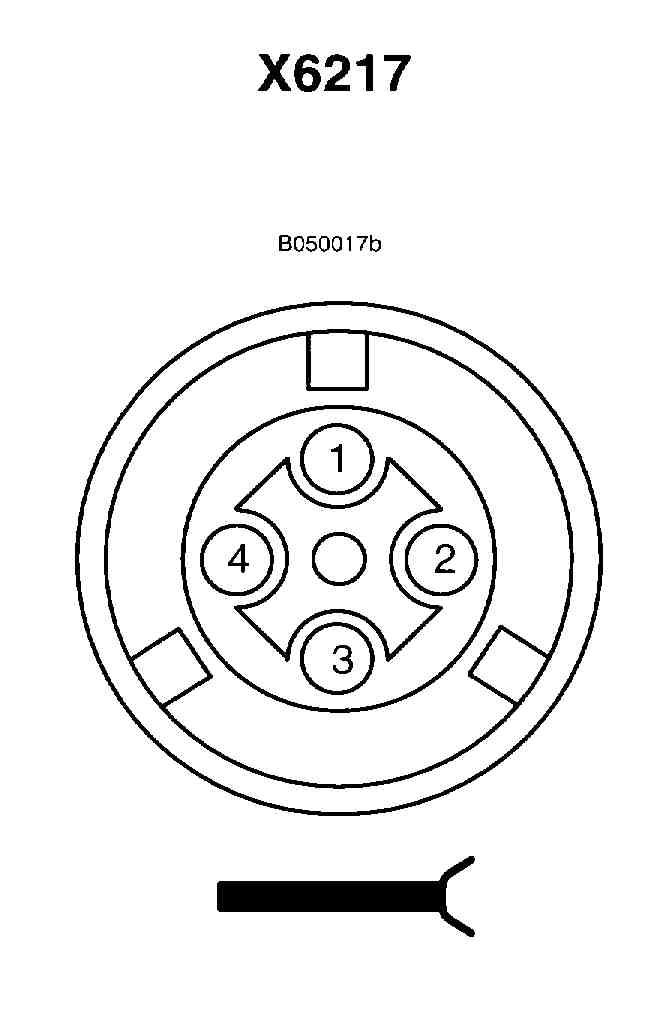

Connector View: X6217:

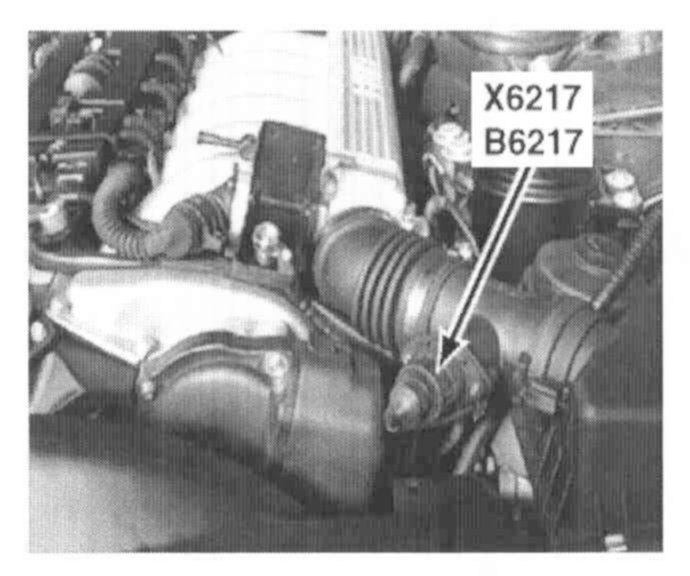

Component / Connector View: B6217, X6217:
Component ID B6217, Hot-Film Mass Air Flow Sensor
Connector ID X6217, Connector (4 Pin, Gray)
Location Front Of Engine Left
