Engine Control Module

Connector View:

VEHICLES PRODUCED FROM SEPTEMBER 1995 TO AUGUST 1996

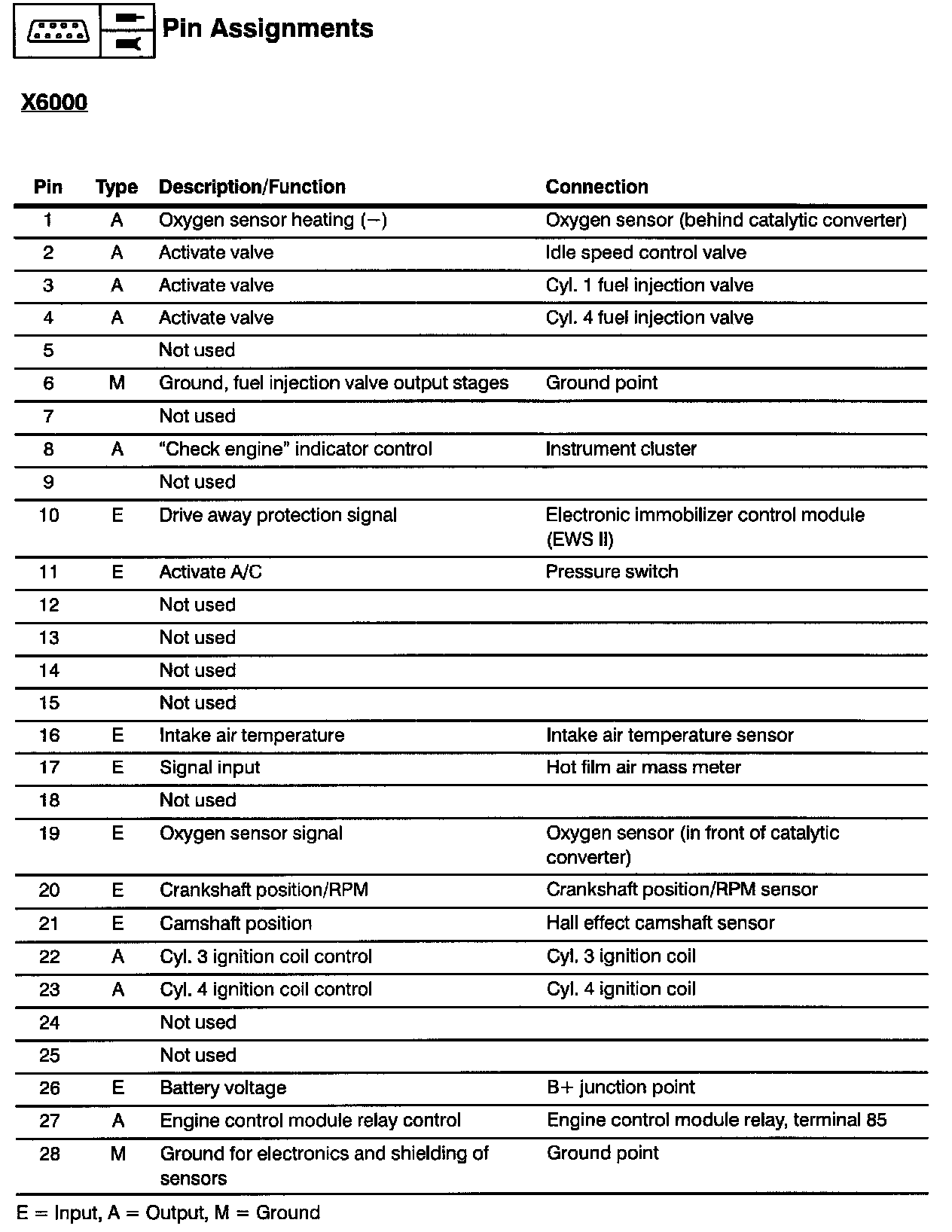

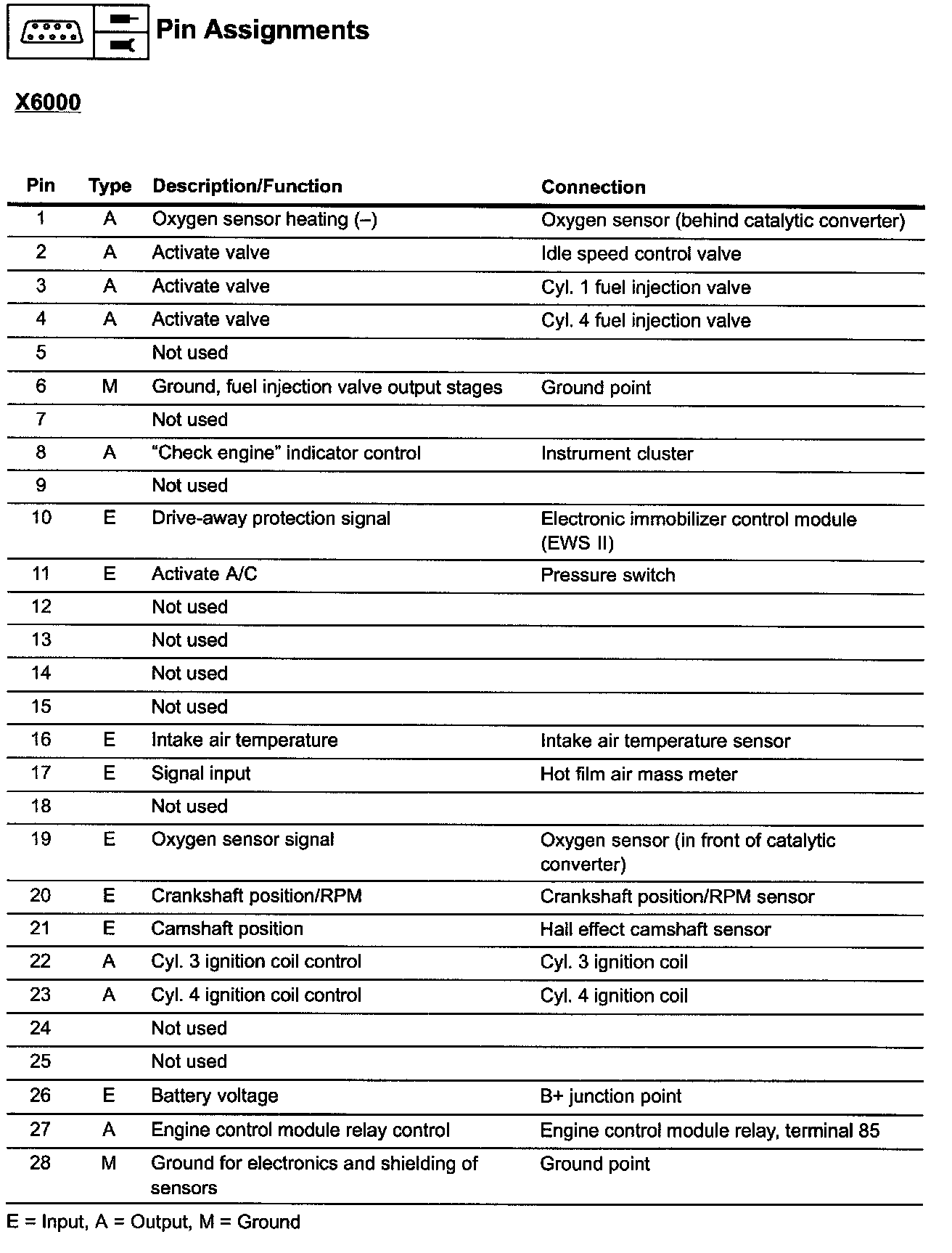

Pin Assignments 1-28:

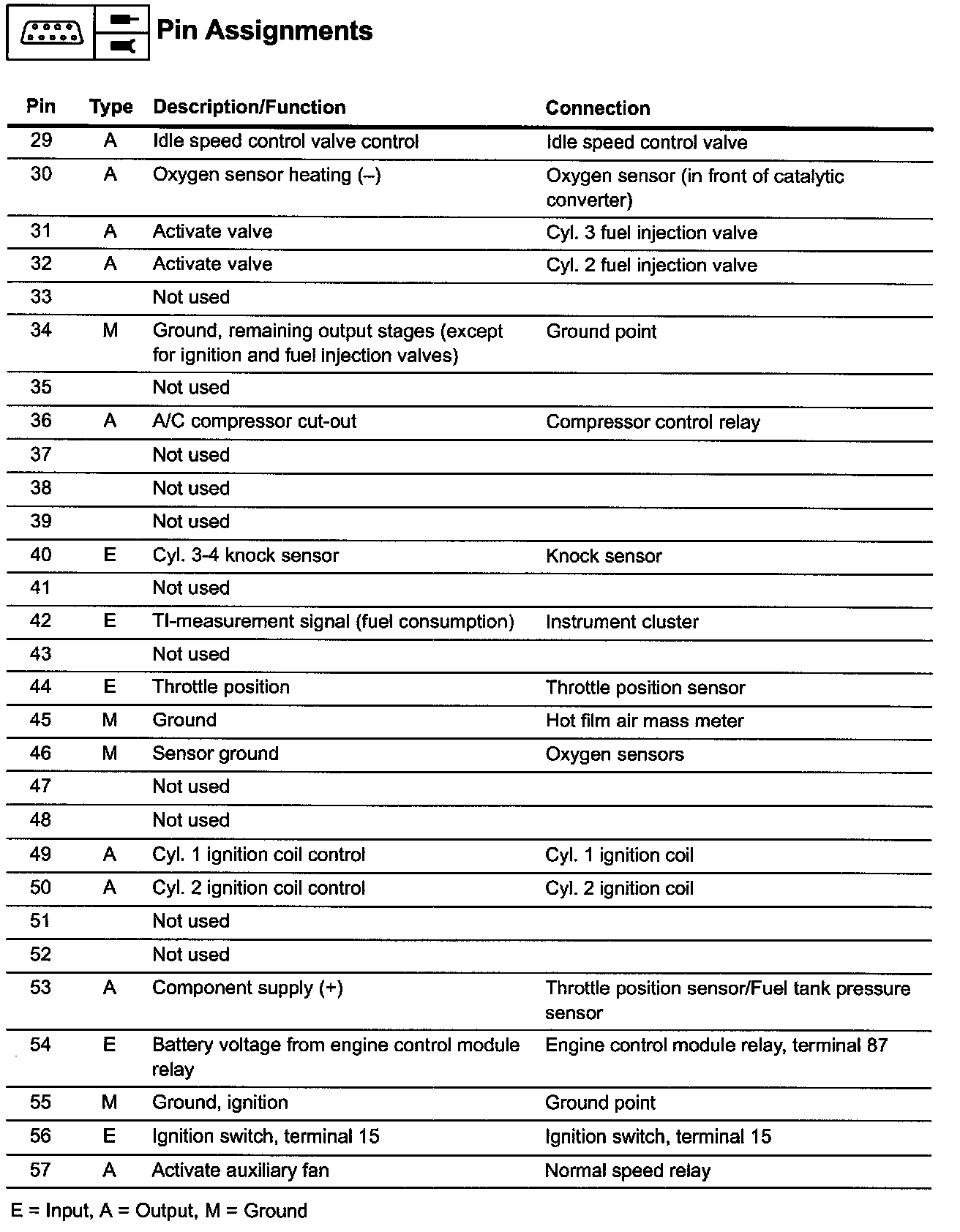

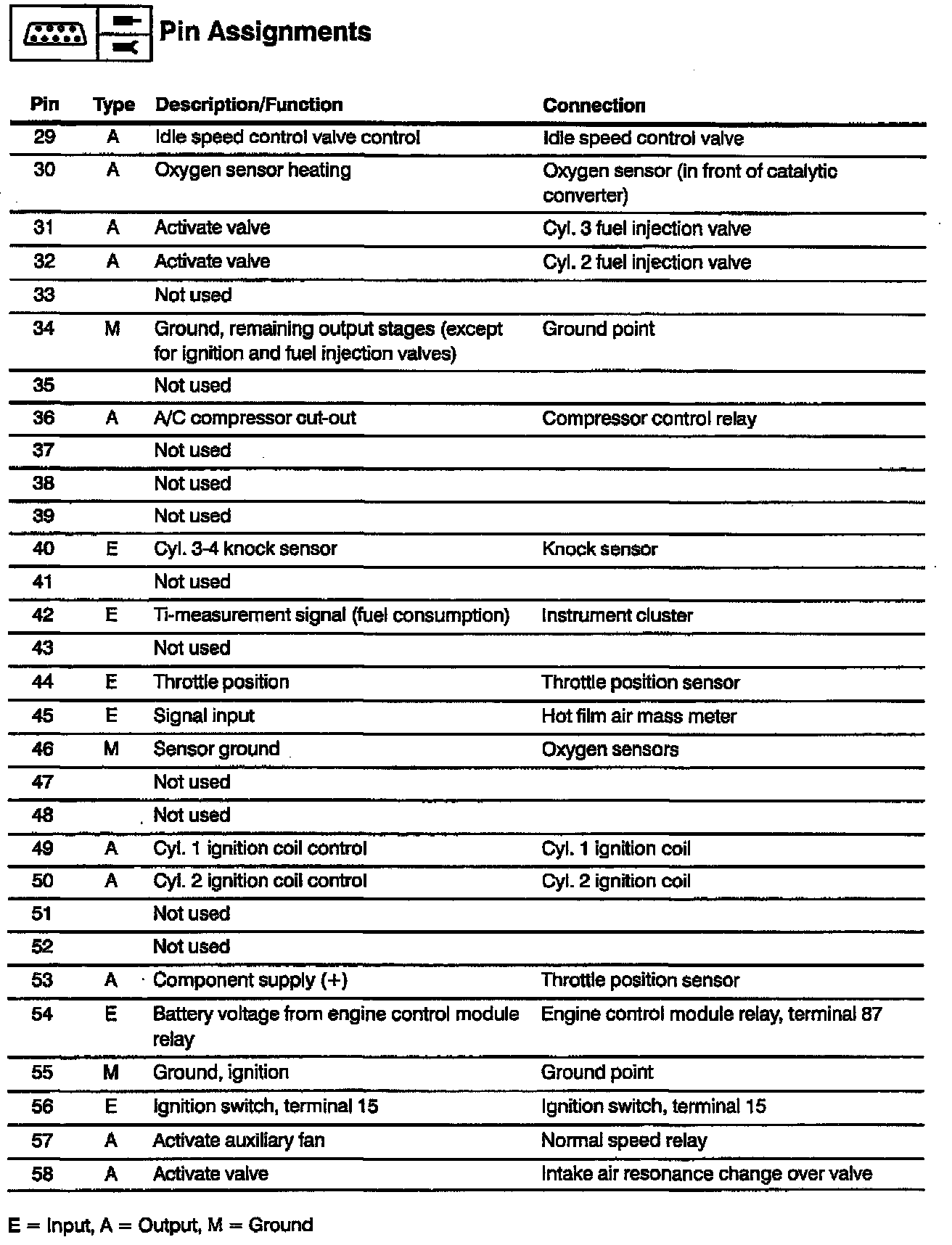

Pin Assignments 29-58:

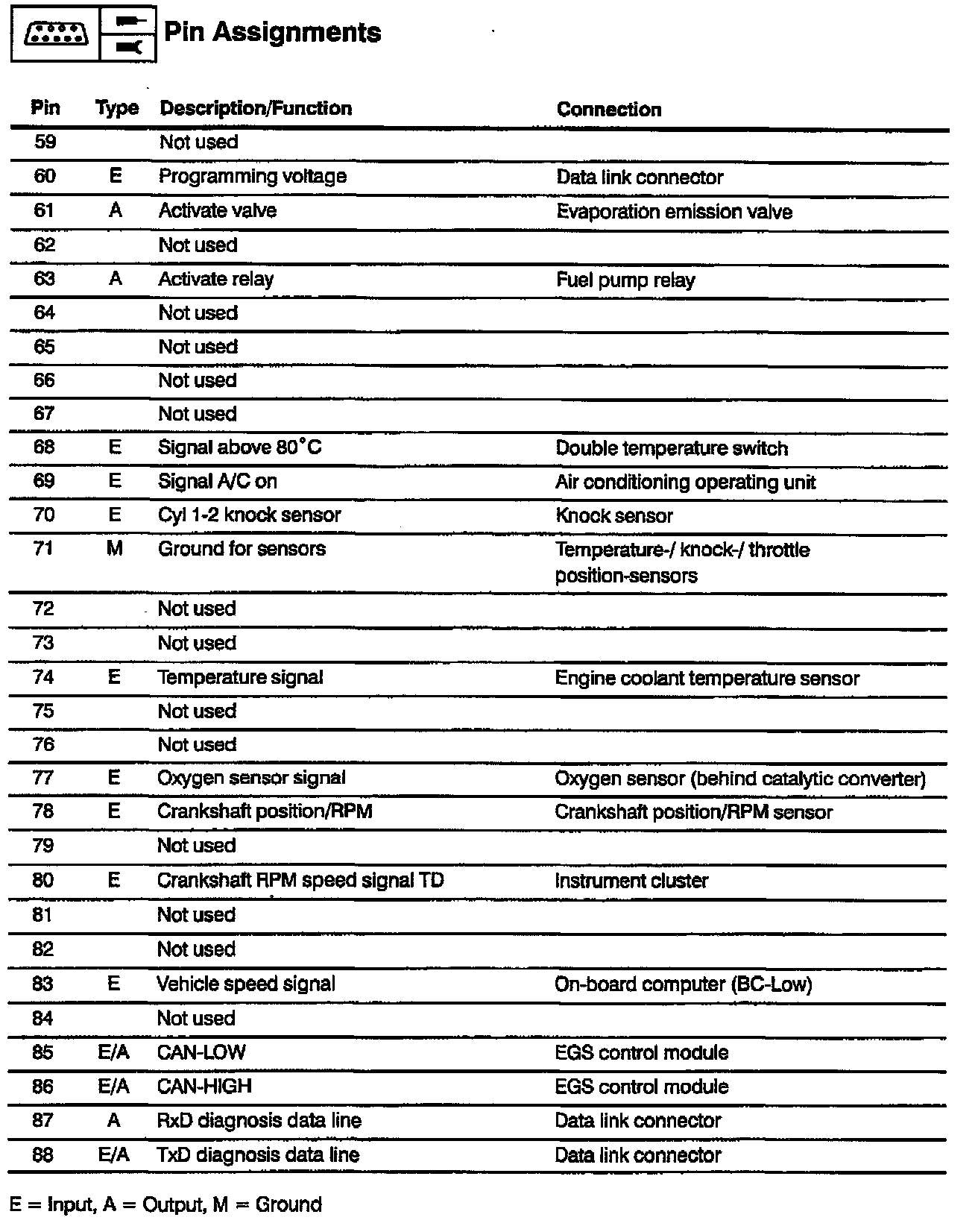

Pin Assignments 59-88:

VEHICLES PRODUCED FROM SEPTEMBER 1996 TO AUGUST 1997

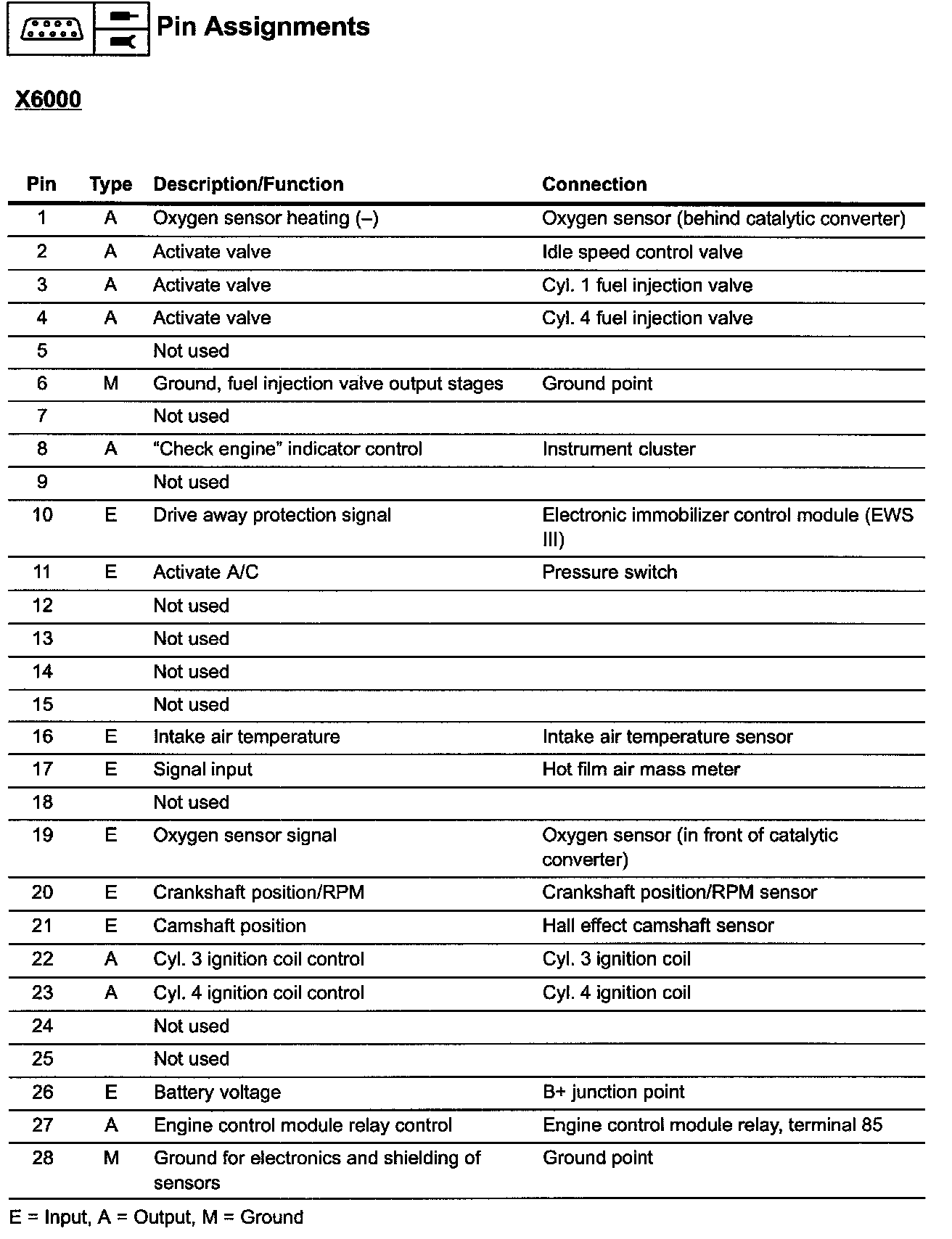

Pin Assignments 1-28:

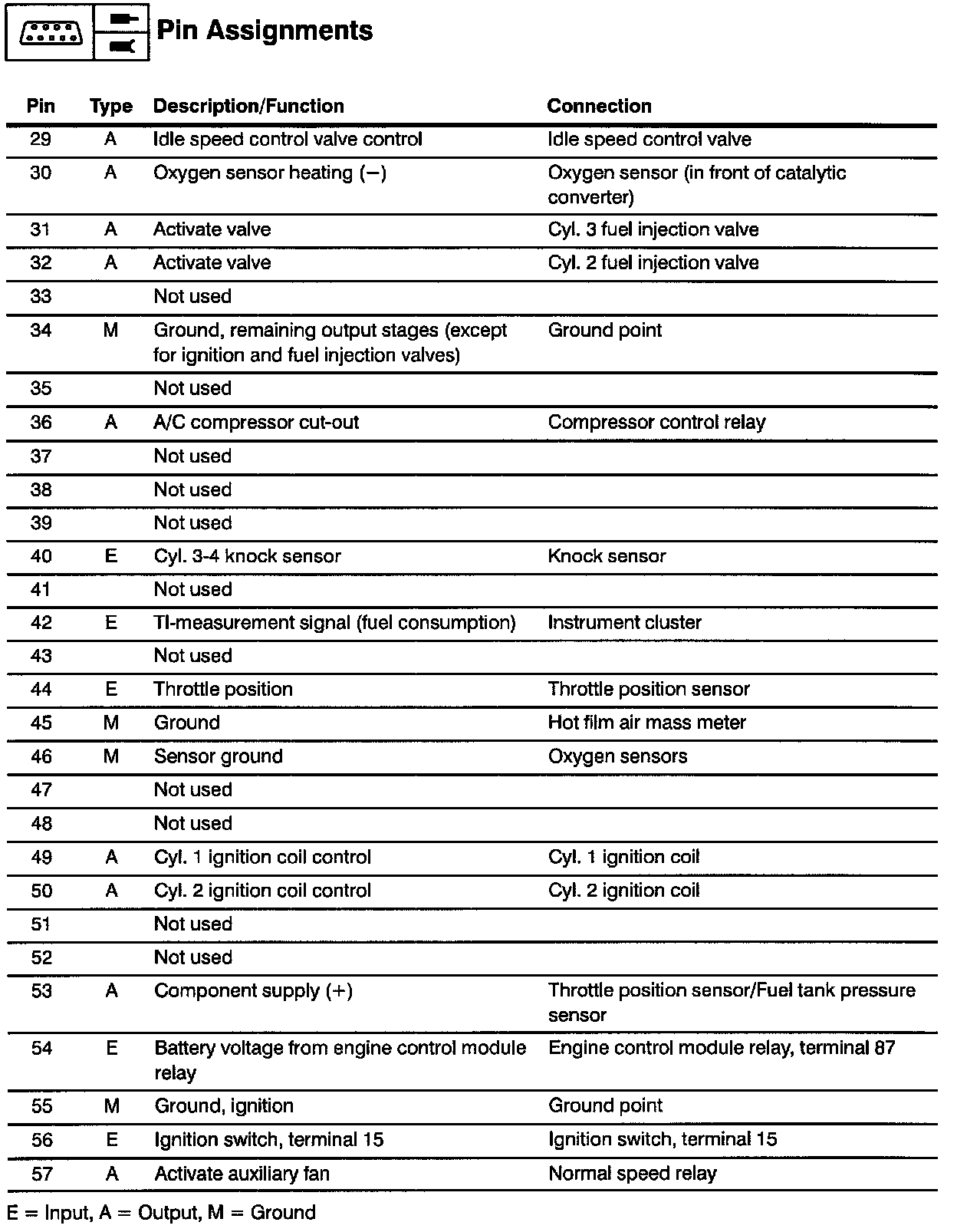

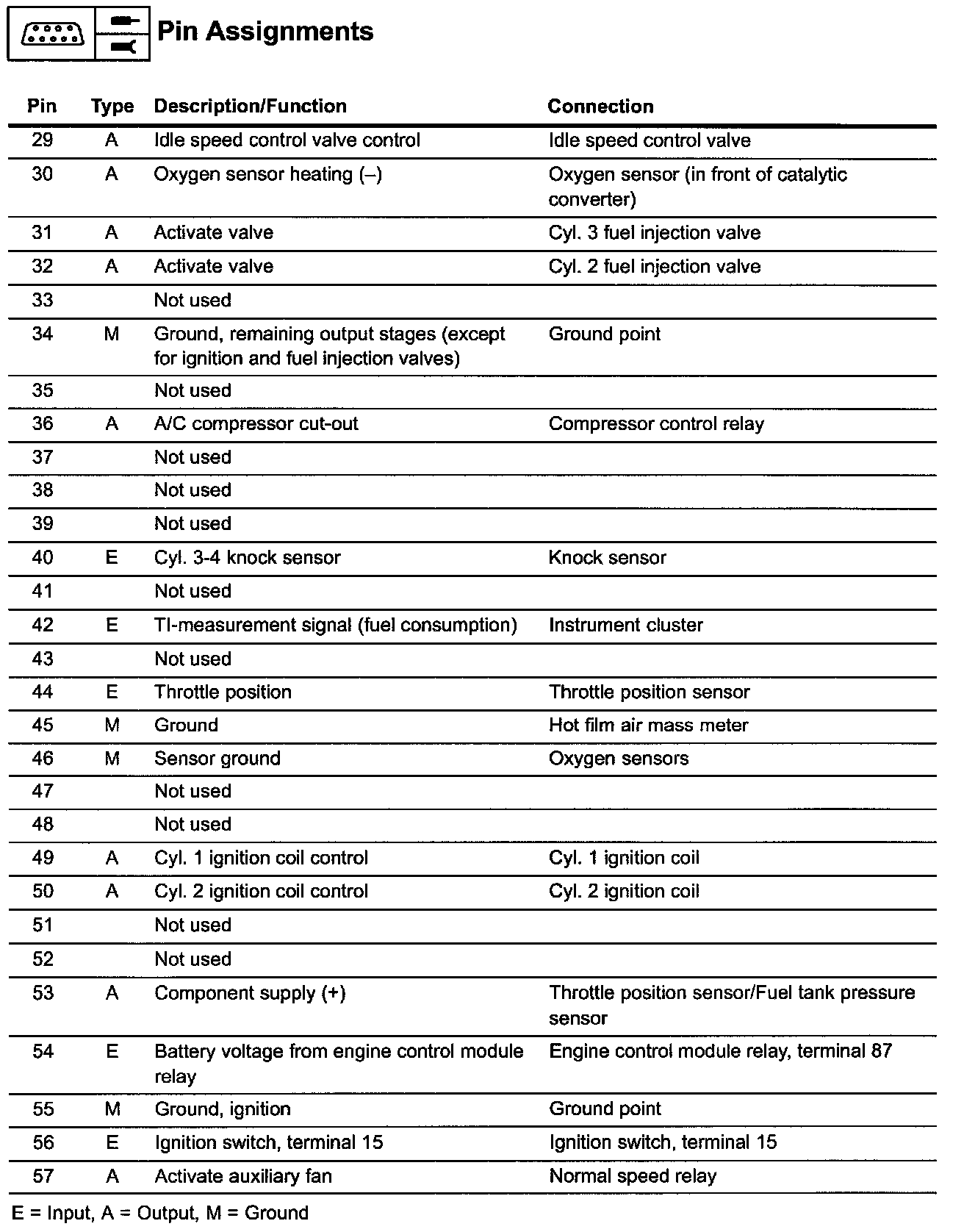

Pin Assignments 29-57:

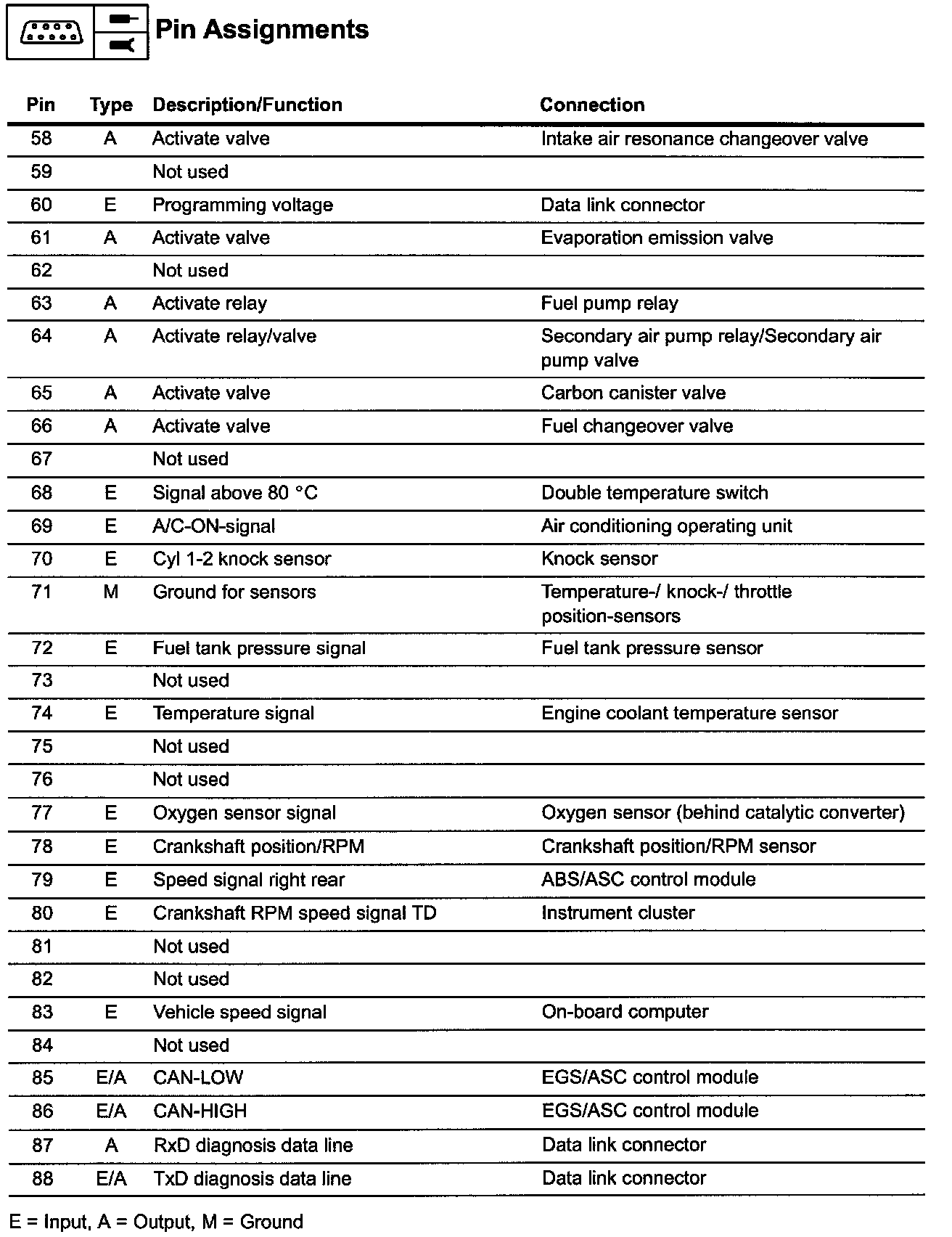

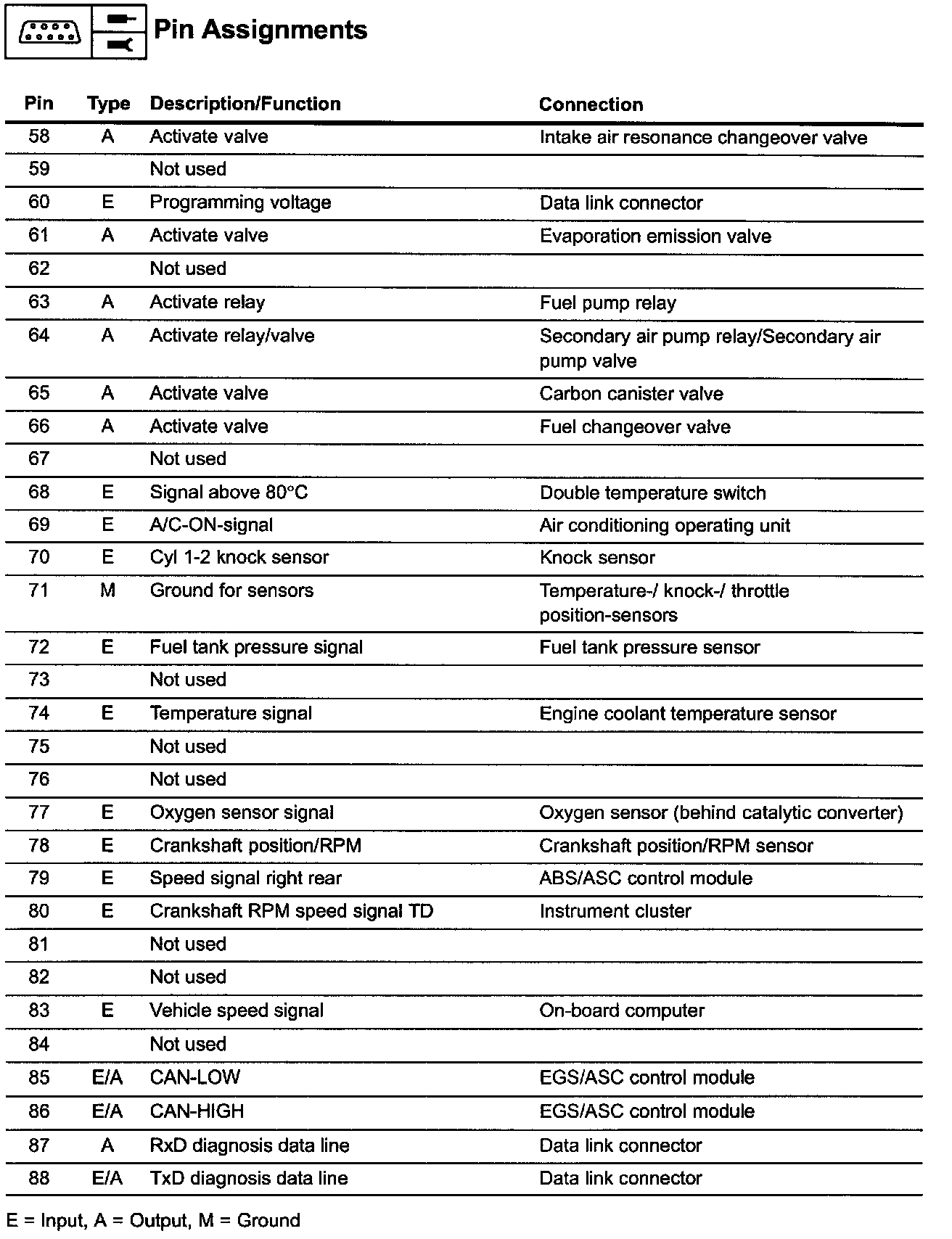

Pin Assignments 58-88:

VEHICLES PRODUCED FROM SEPTEMBER 1997 TO AUGUST 1998

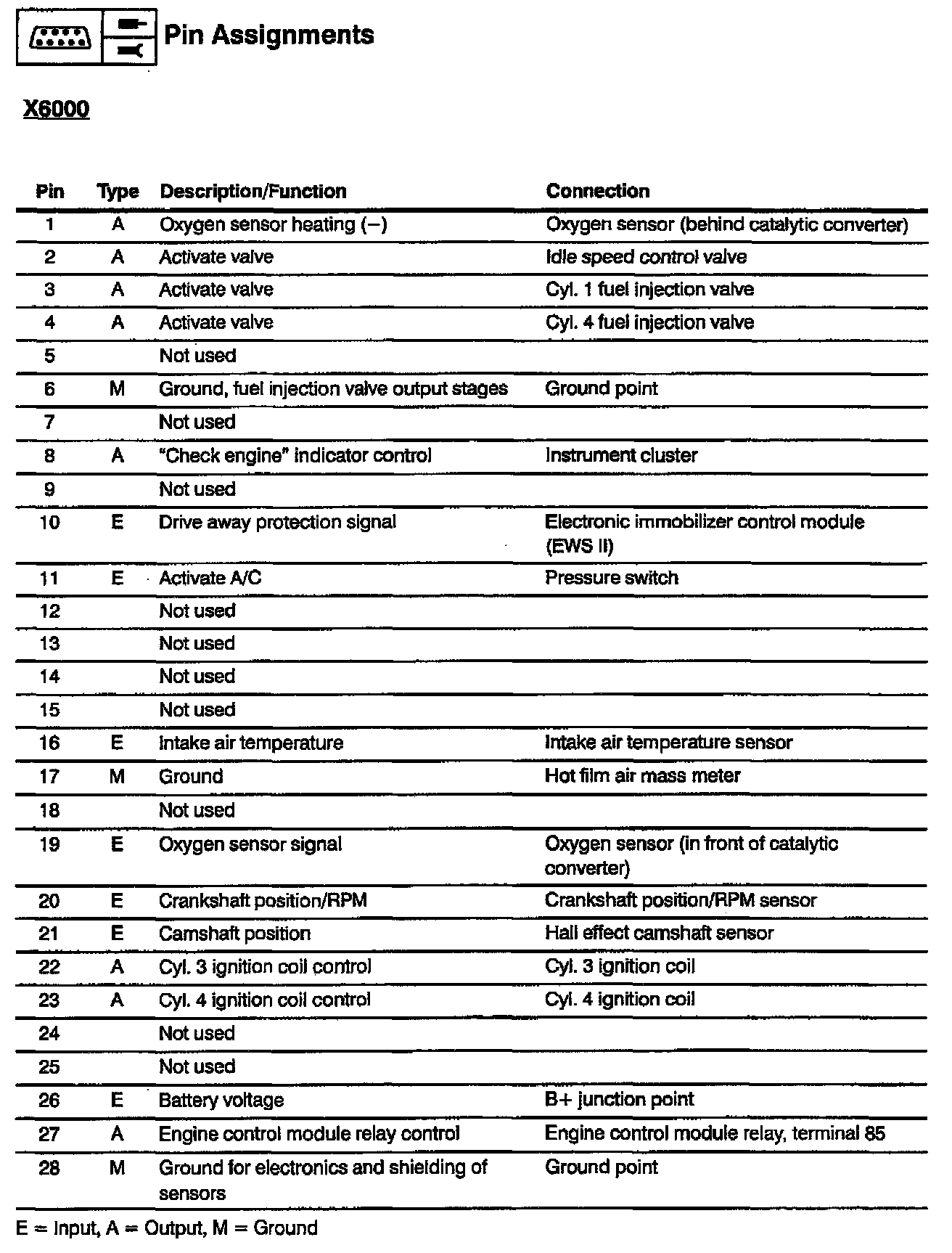

Pin Assignments 1-28:

Pin Assignments 29-57:

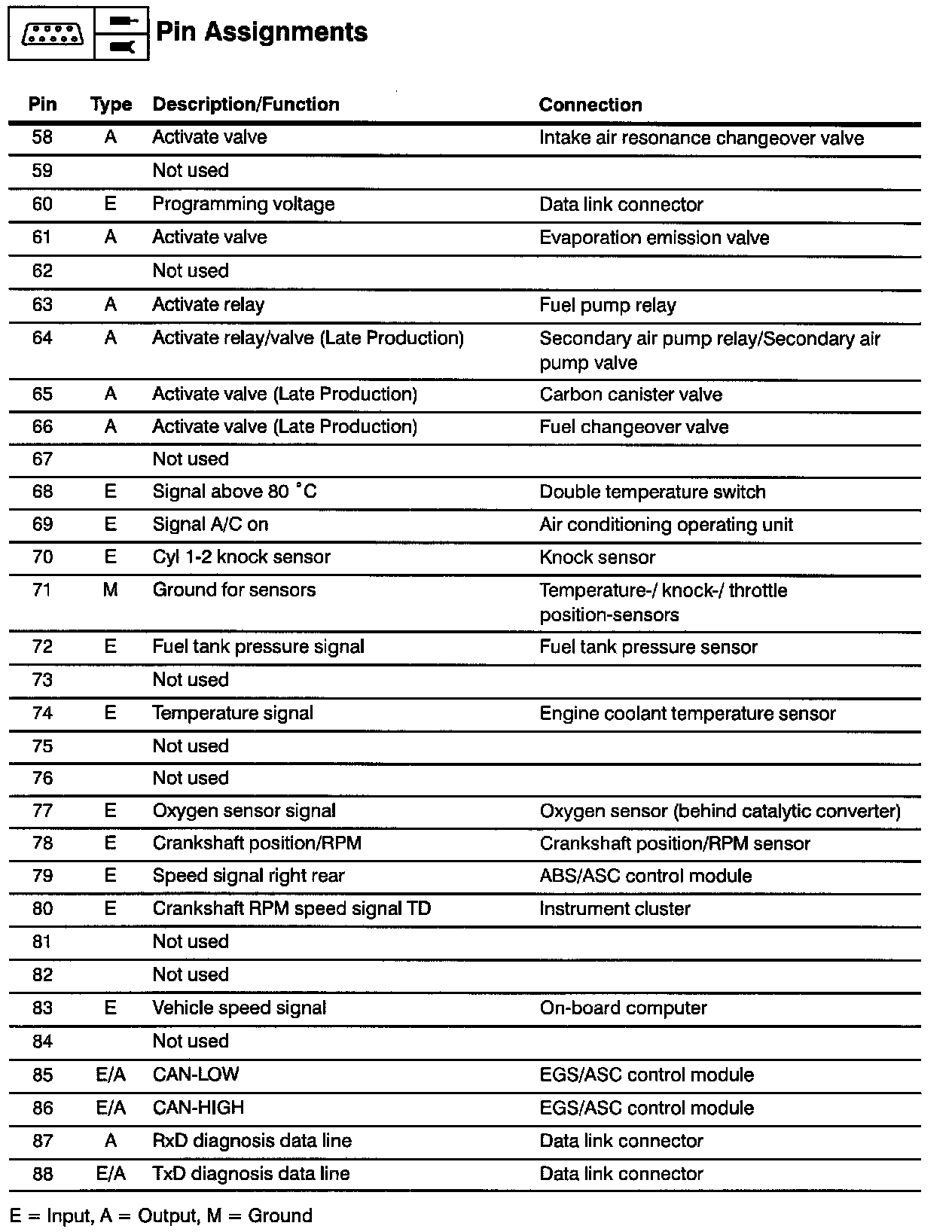

Pin Assignments 58-88:

VEHICLES PRODUCED FROM SEPTEMBER 1998 TO AUGUST 1999

Pin Assignments 1-28:

Pin Assignments 29-57:

Pin Assignments 58-88:
