Symbol Identification

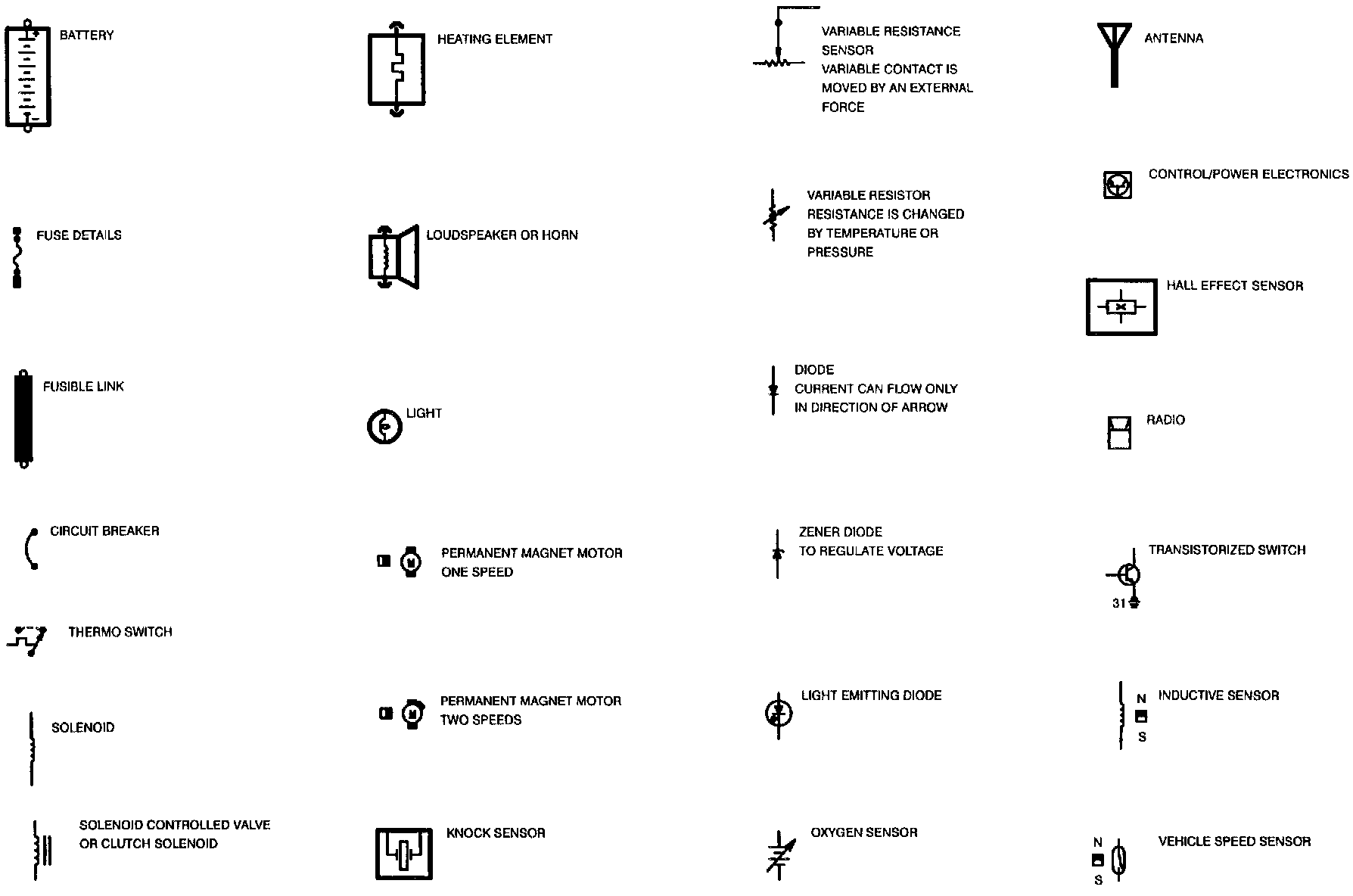

Symbols: Electrical Elements:




Electrical Elements

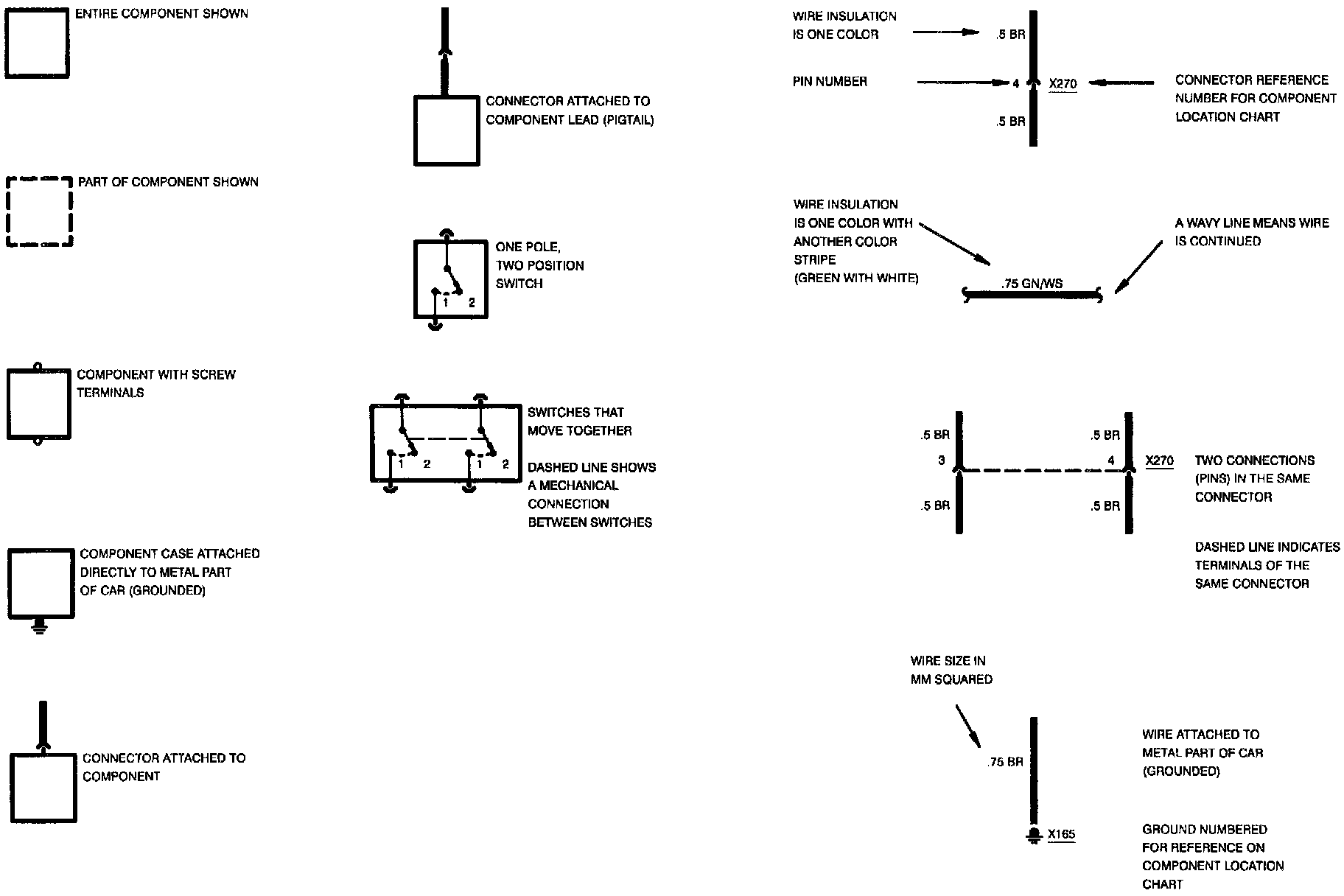

Symbols: Component, Connectors, Switches And Ground Symbols:




Component, Connector, Switches And Ground Symbols

Symbols: Contact Relay:




Contact Relay

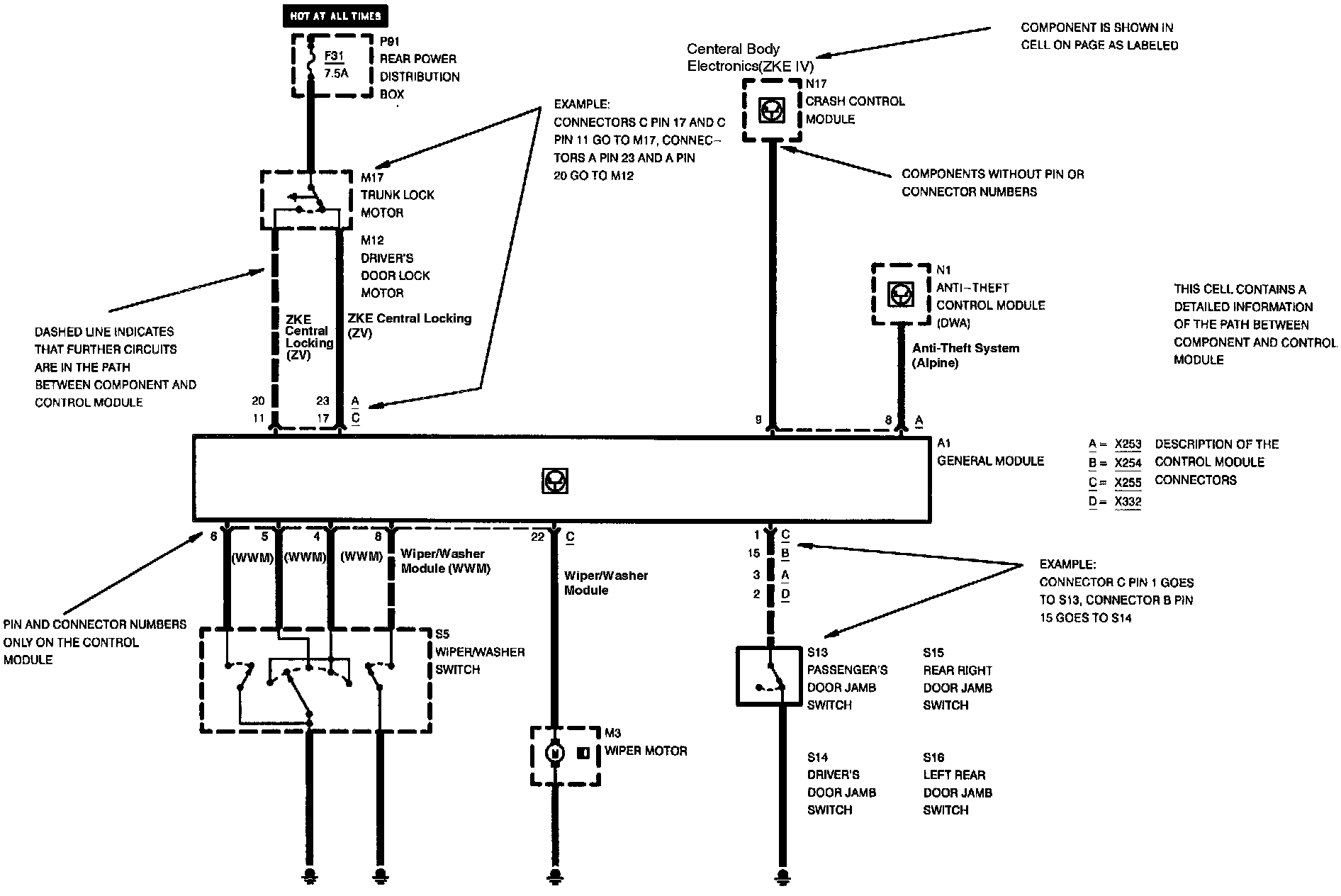

Symbols: Component Number, Name & Details:




Component Number, Name & Details

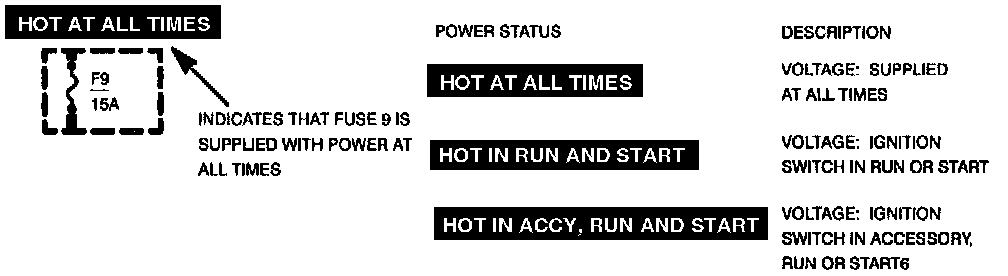

Symbols: Power Status:




Power Status

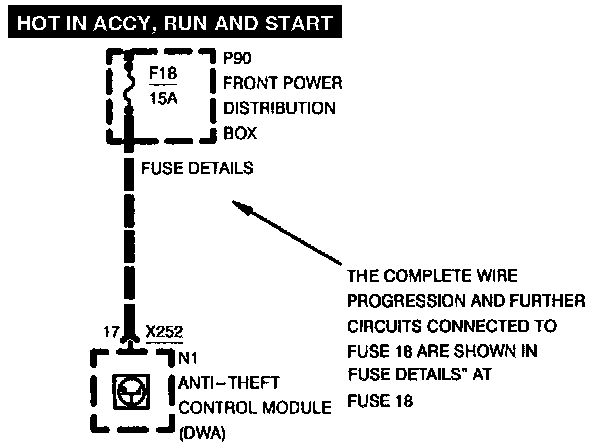

Symbols: Wire Progression And Further Circuits Connected To Fuse:




Wire Progression And Further Circuits Connected To Fuse

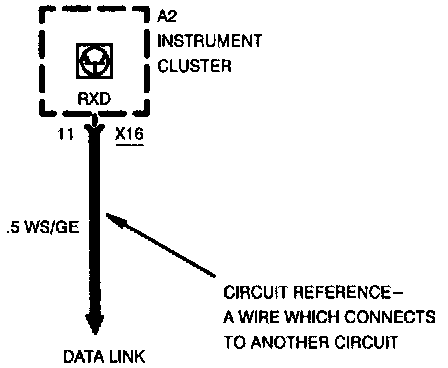

Symbols: Circuit Reference:




Circuit Reference

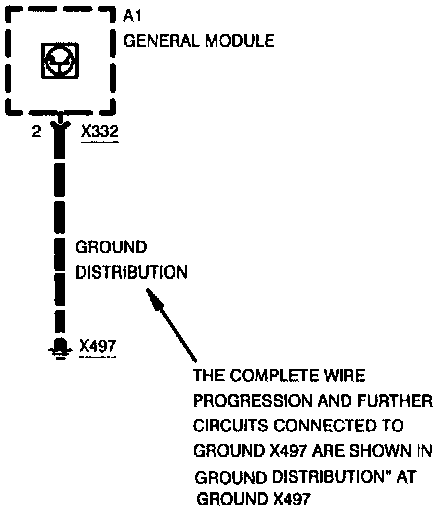

Symbols: Wire Progression And Further Circuits Connected To Ground:




Wire Progression And Further Circuits Connected To Ground

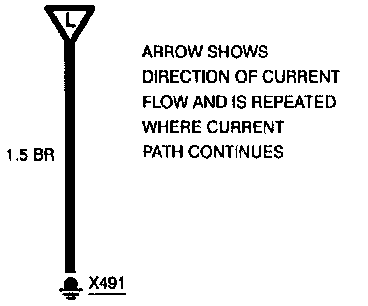

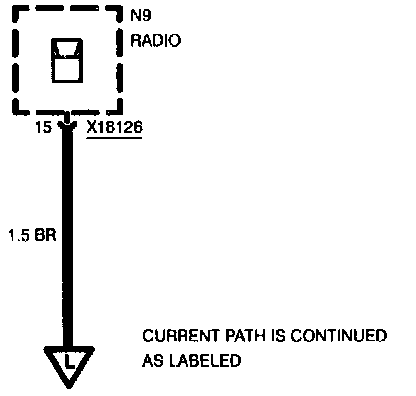

Symbols: Current Path:




Current Path

Symbols: Direction Of Current Flow:




Direction Of Current Flow

Symbols: Block Diagram:




Block Diagram
