Reprograming of Engine Control Module











Reprograming of engine control module

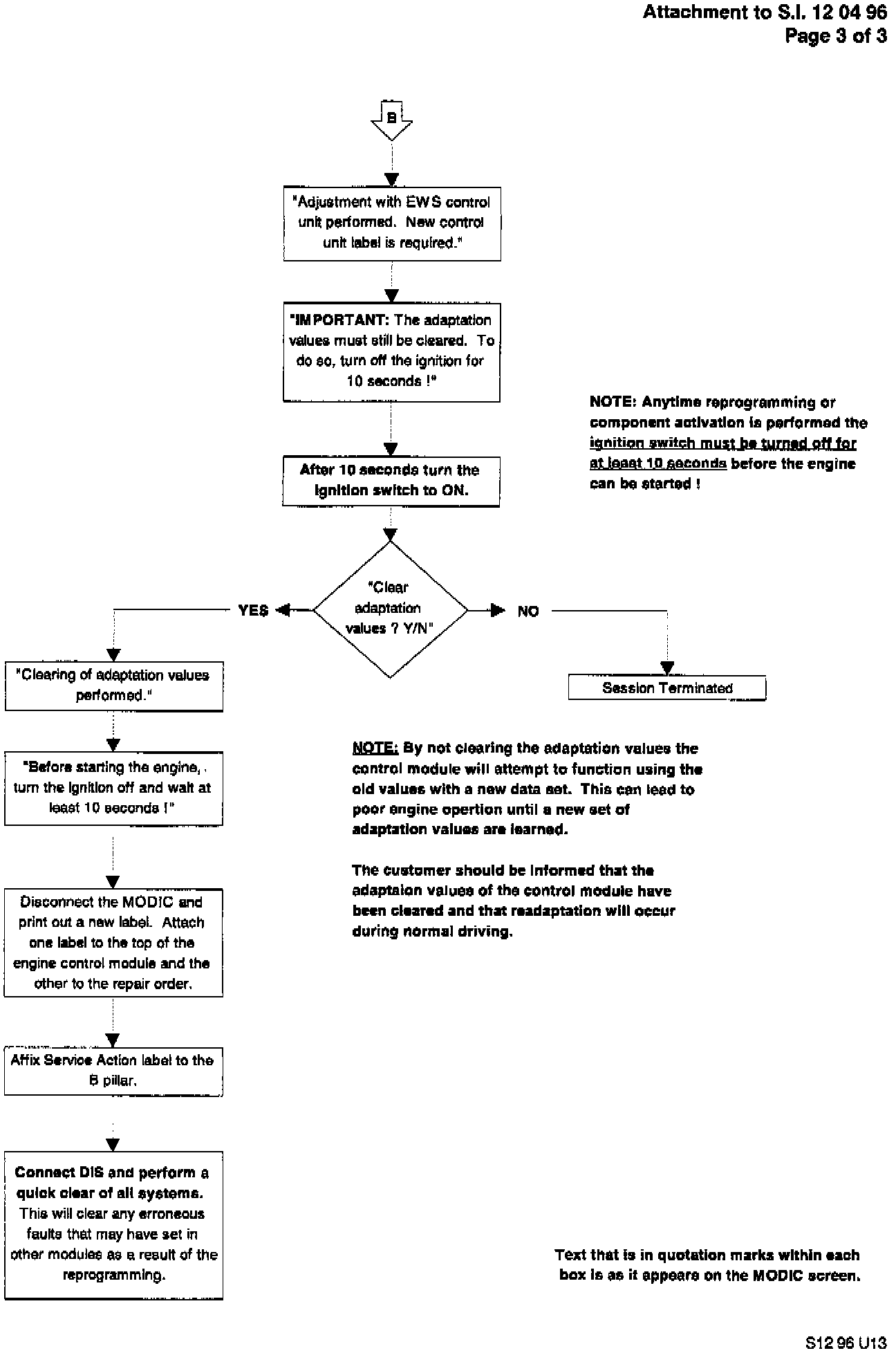

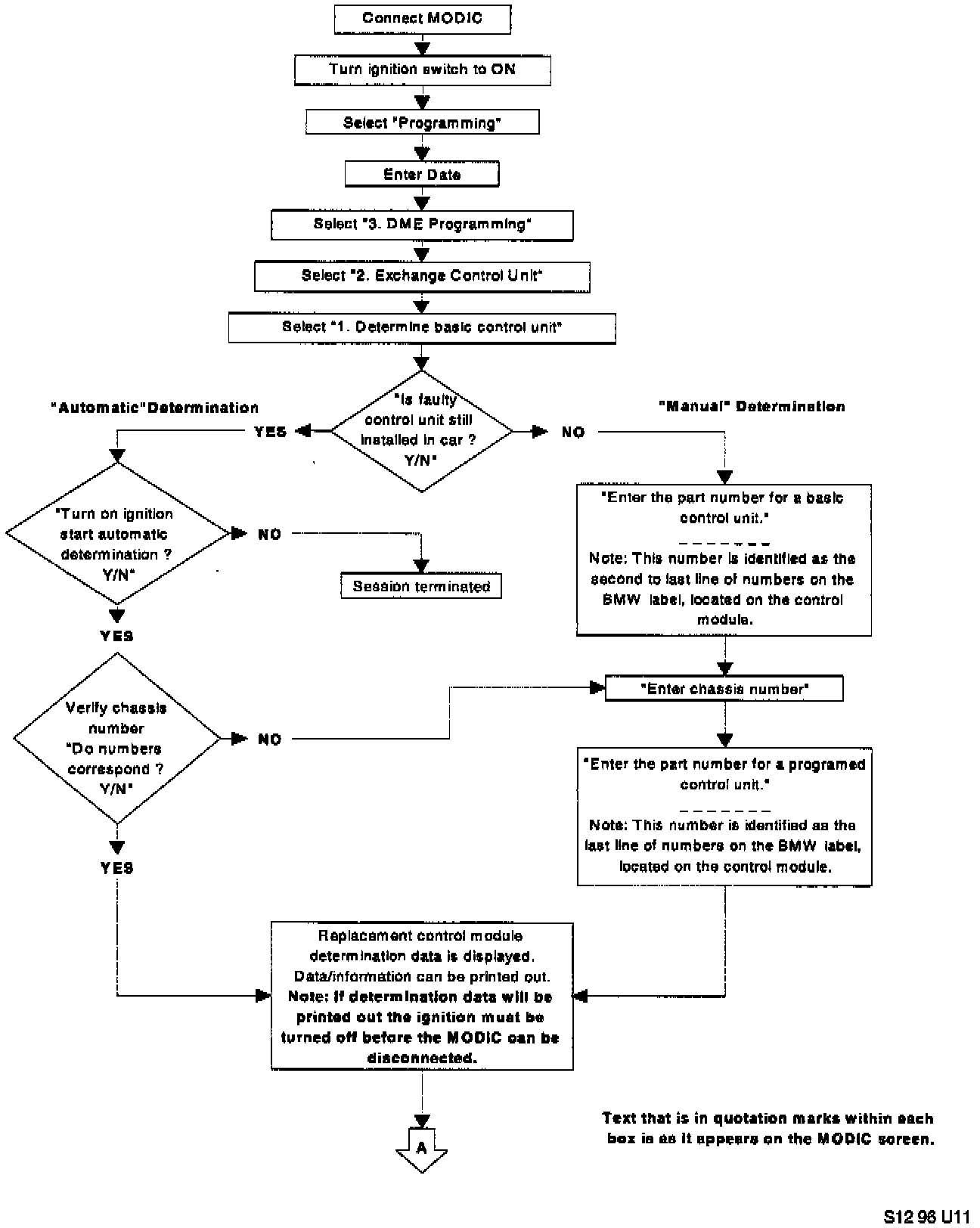

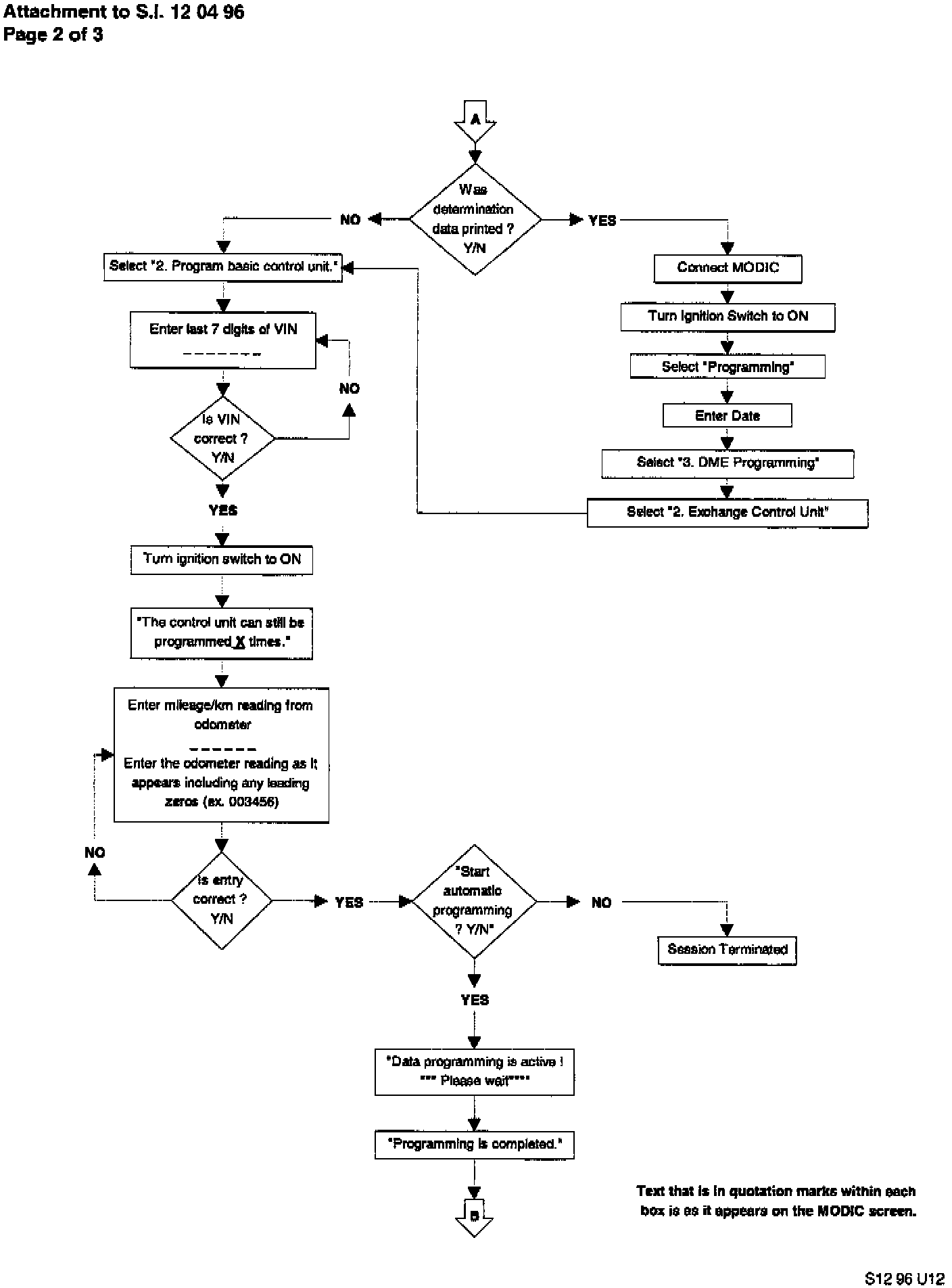

The flow chart provides information on how to perform a determination and programming/update of a currently installed of replacement "flash" control module using the MODIC.
