Engine Control Module

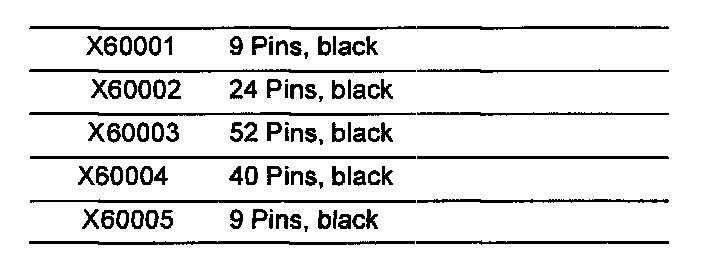

Connector Overview:




X60001 Component Connector (9-pin, Black):




X60002 Component Connector (24-pin, Black):




X60003 Component Connector (52-pin, Black):




X60004 Component Connector (40-pin, Black):




X60005 Component Connector (9-pin, Black):

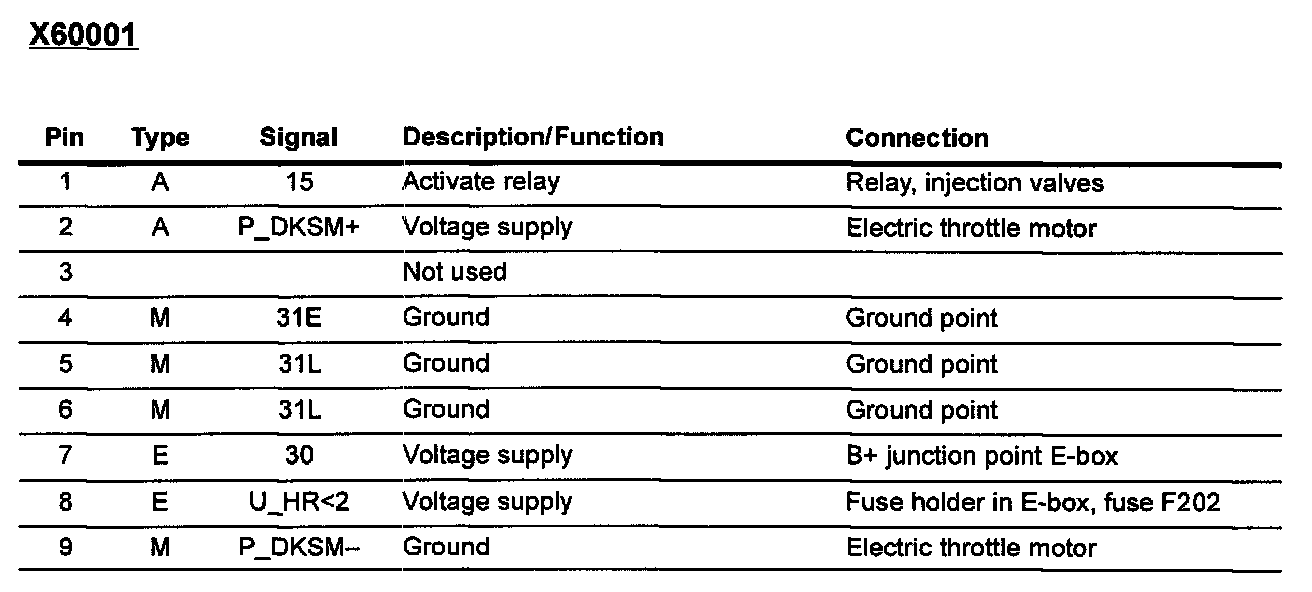

X60001:

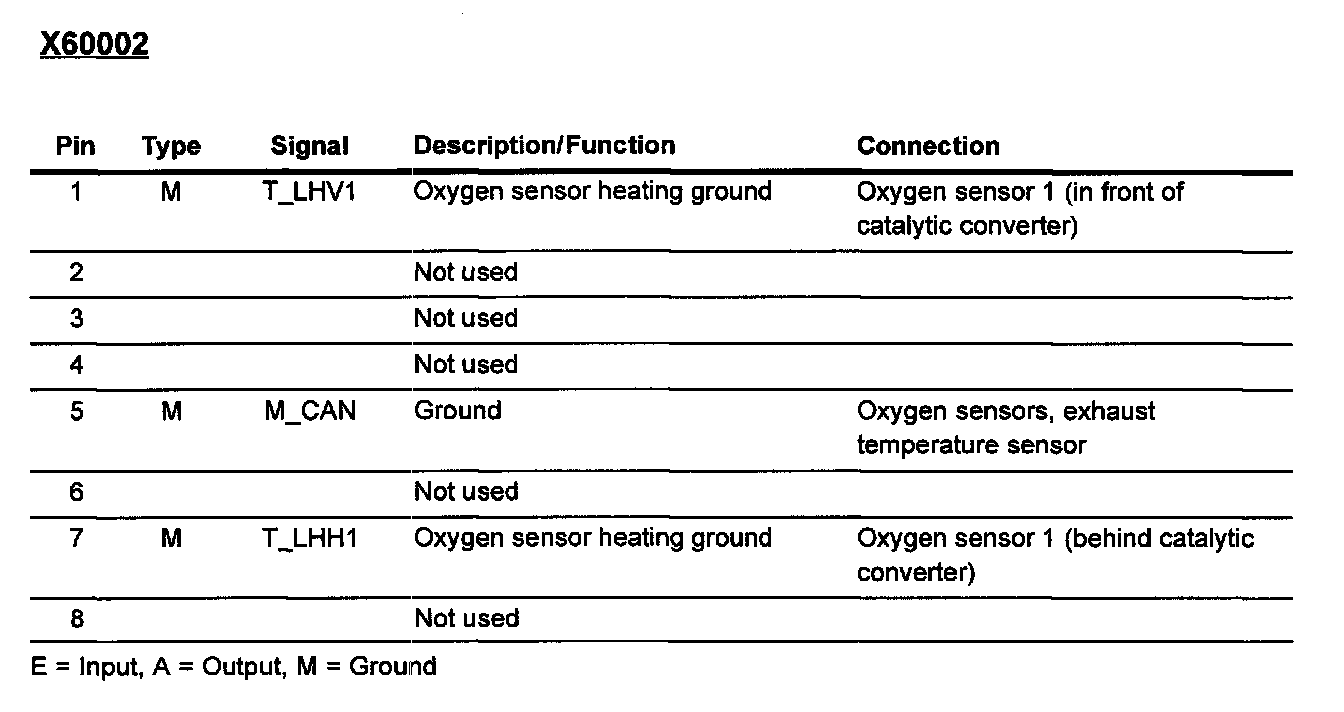

X60002 (1-8):

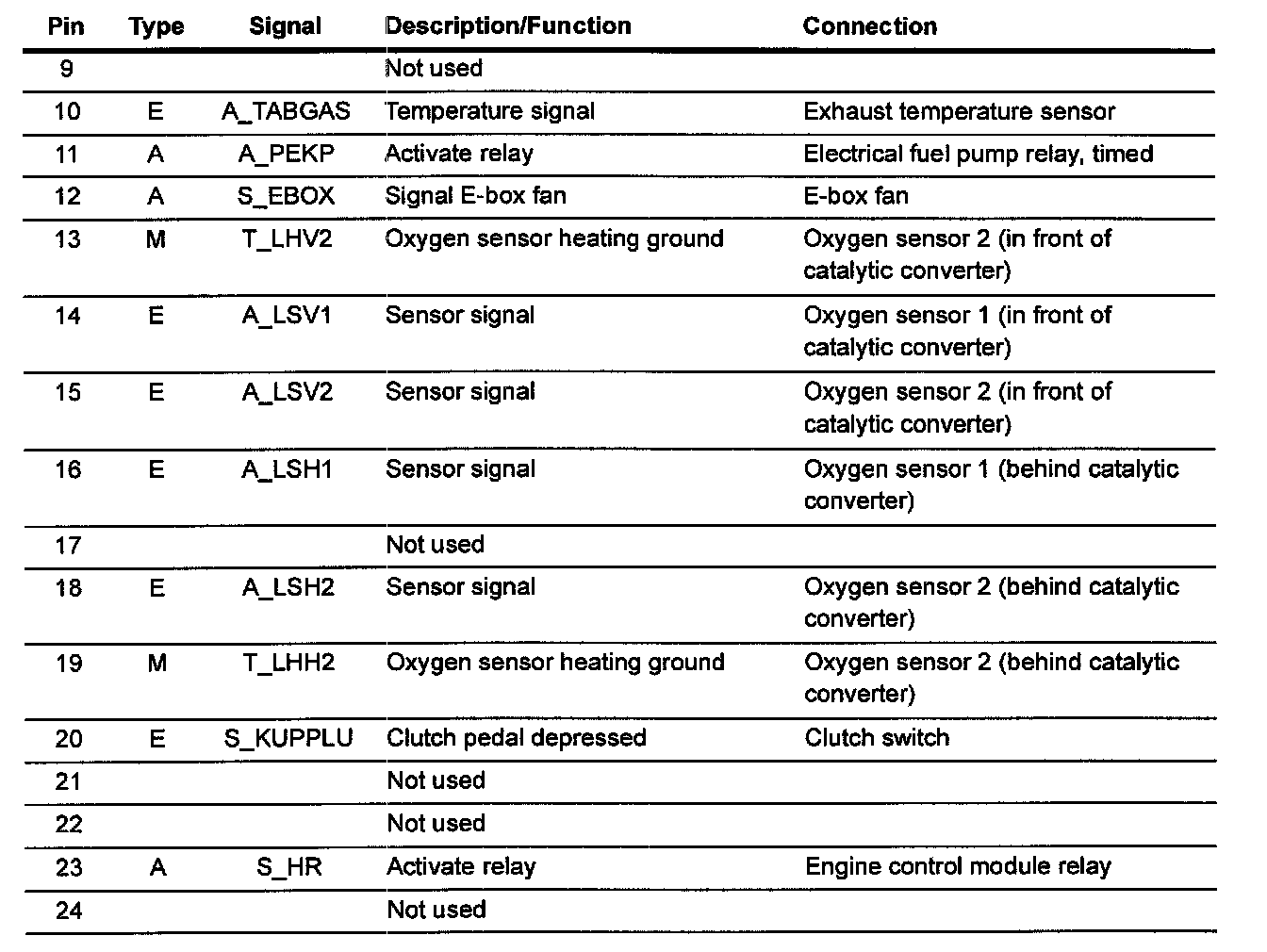

X60002 (9-24):

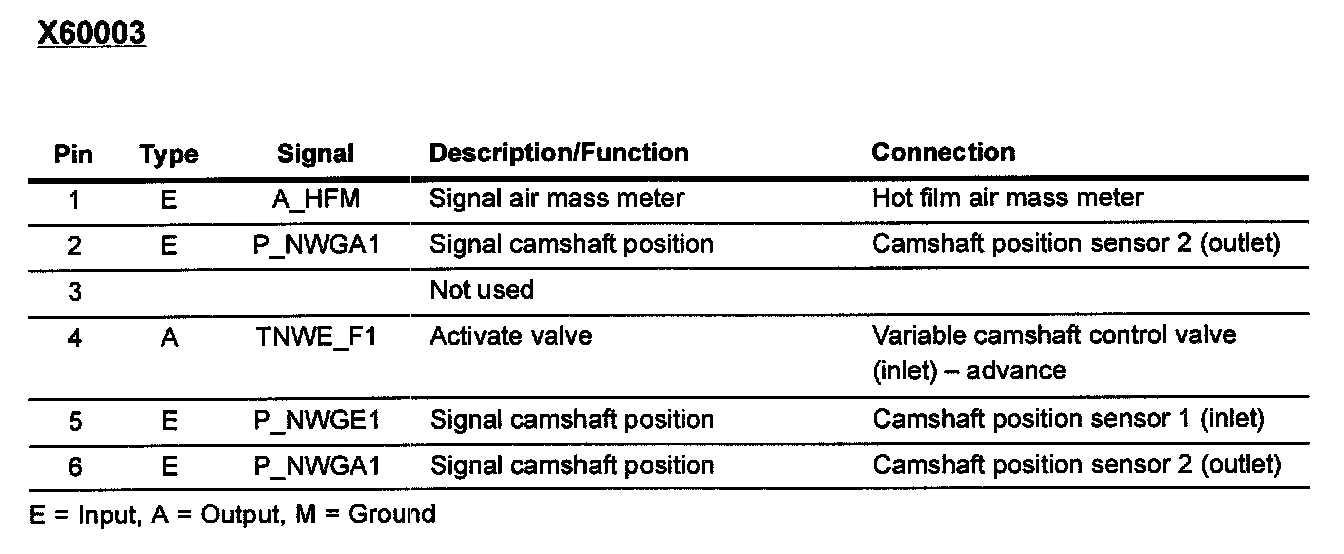

X60003 (1-6):




X60003 (7-36):

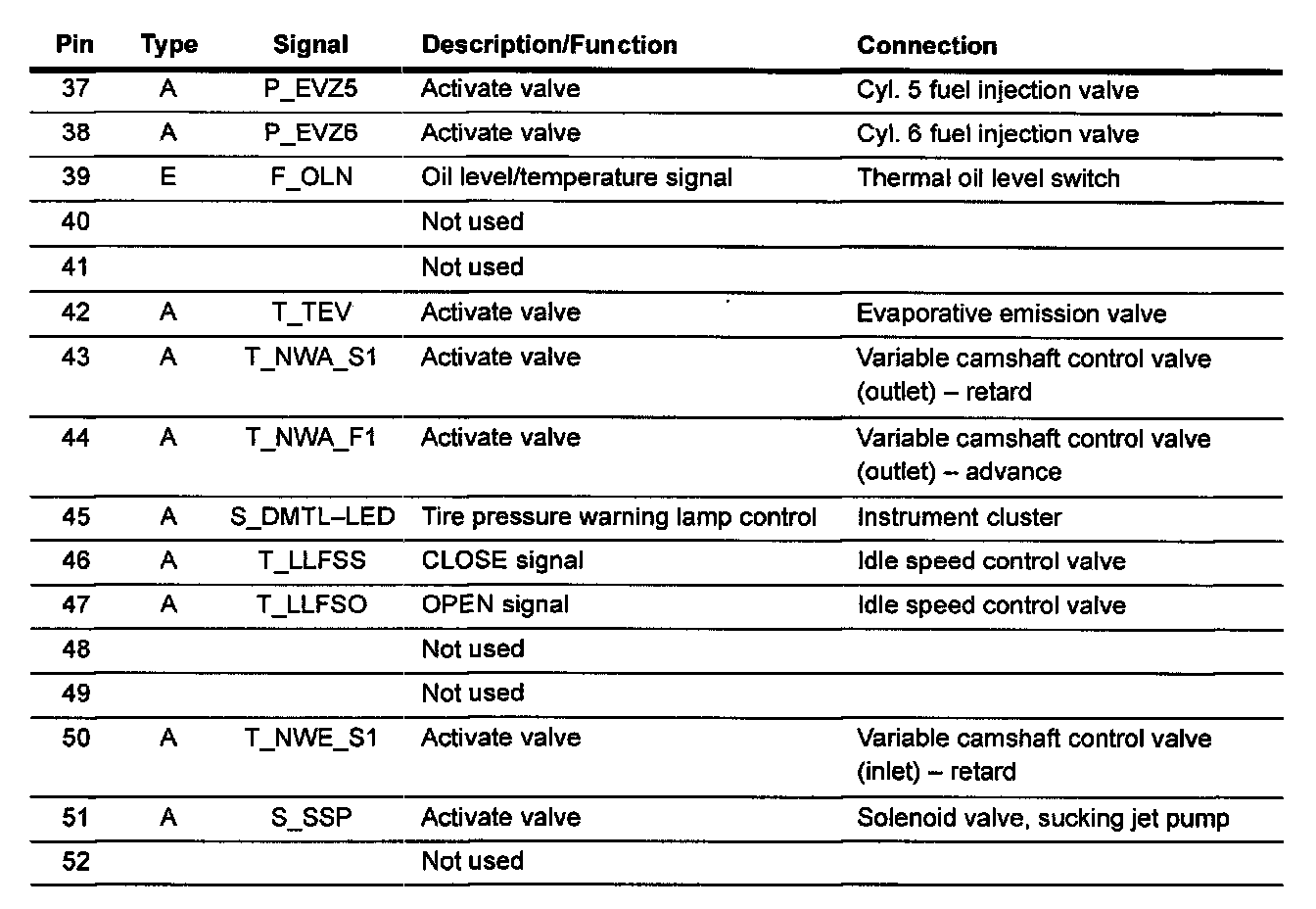

X60003 (37-52):






X60004 (1-10):

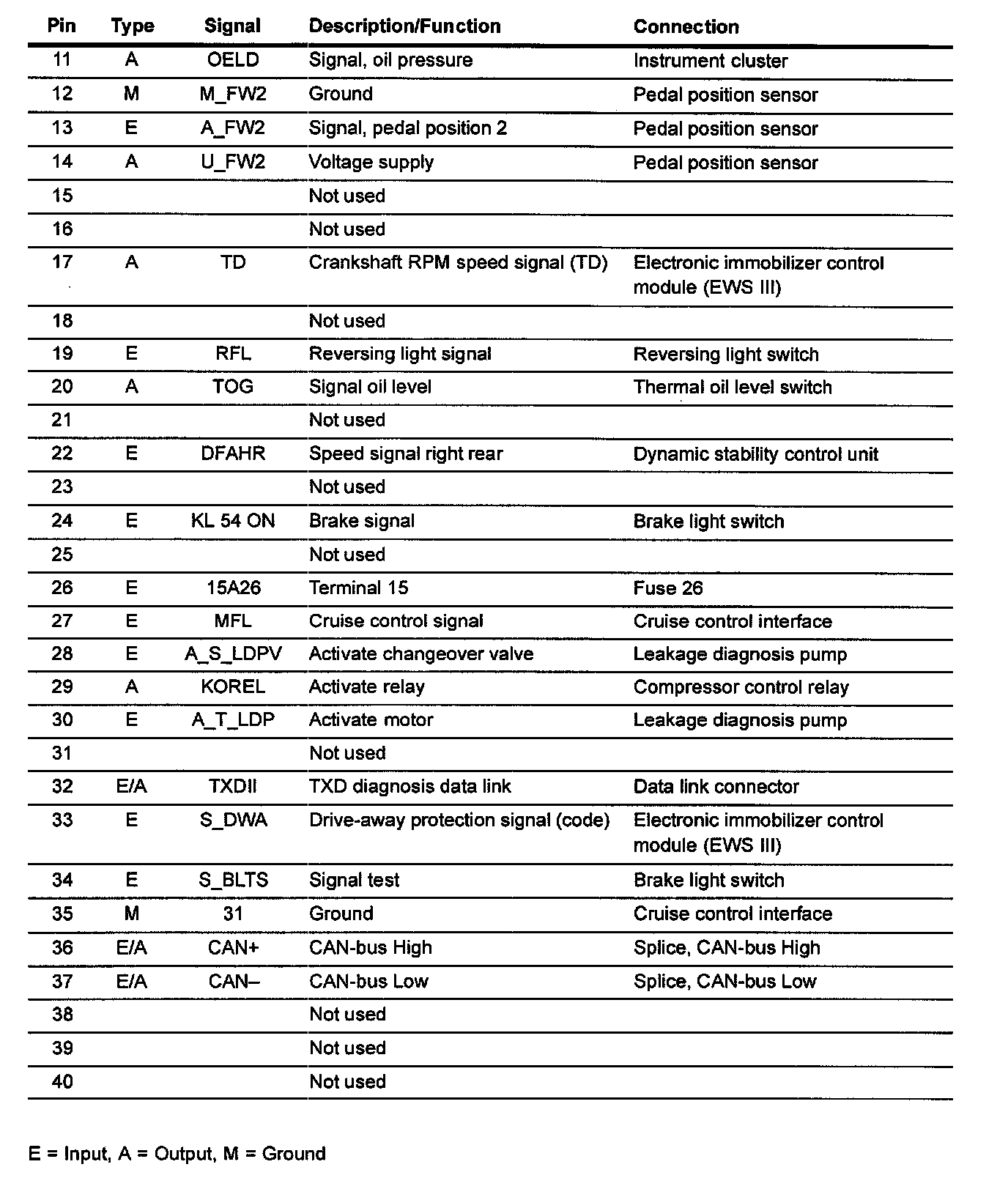

X60004 (11-40):

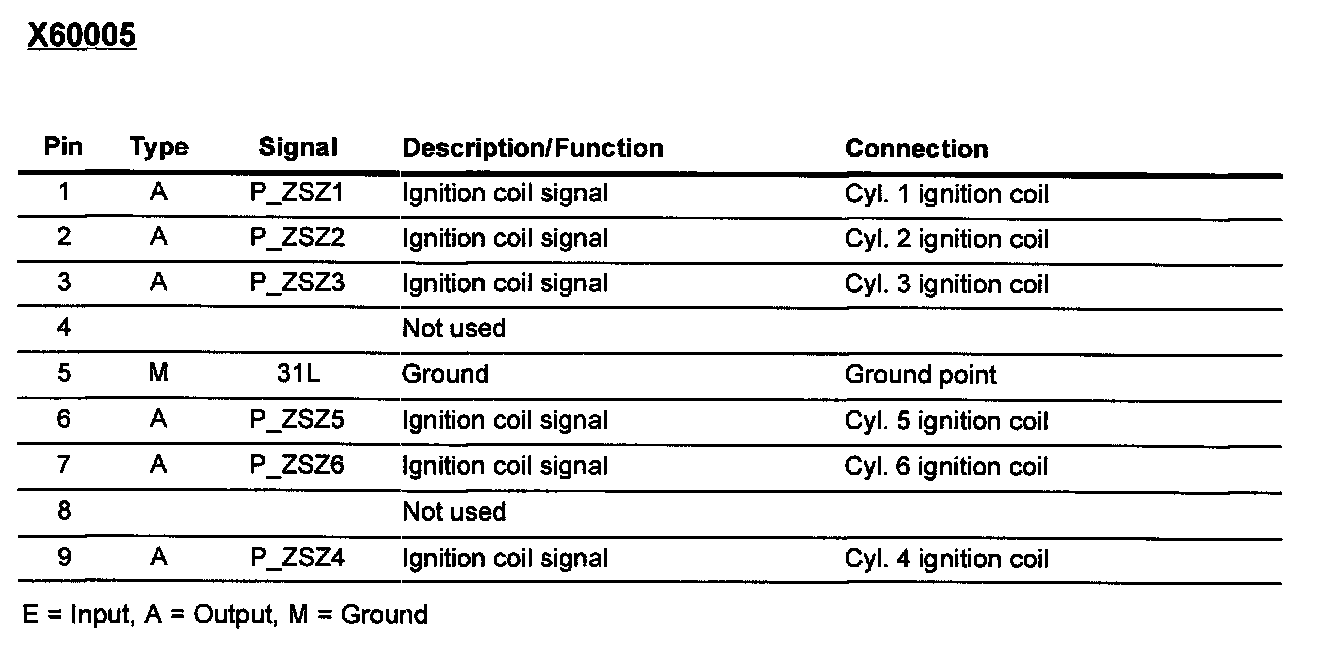

X60005:
