Navigation Computer With CD-Drive, Replacement

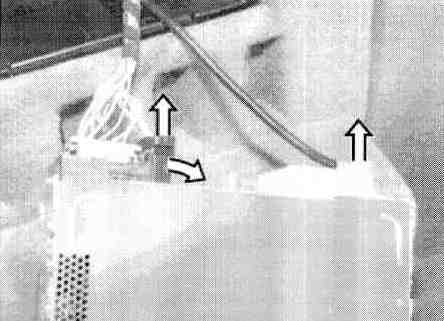

Unfasten navigation computer with release clips and pull out.

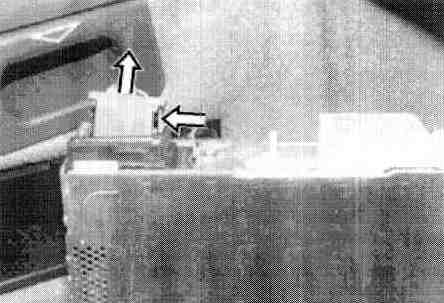

Press off clips and remove connector.

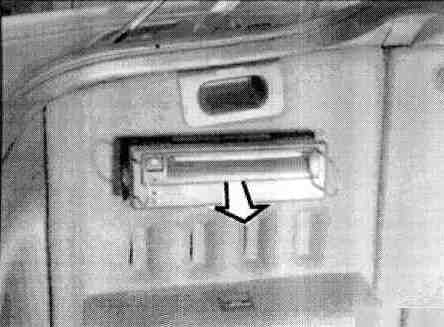

Press in retaining clips and remove connector.
