Transmitter Initialization

Transmitter Initialization

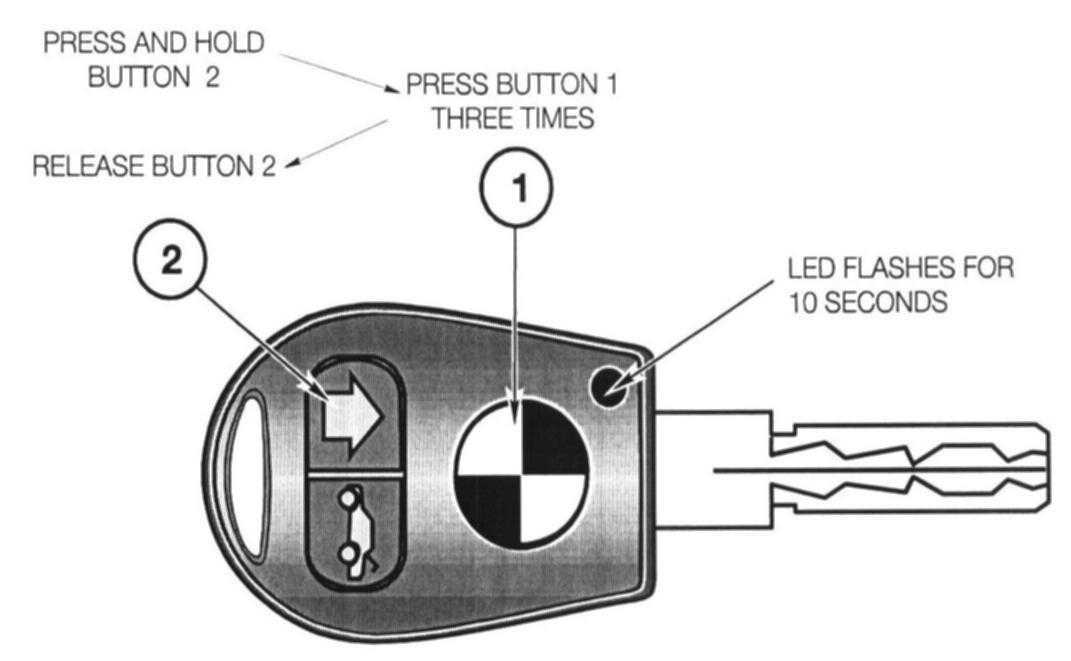

Up to four transmitters can be coded to operate the remote system. All transmitters must be initialized at the same time. The initialization procedure is as follows:
1. All doors closed.
2. Switch KI. R on and off, within max. 5 seconds.
3. Press and hold button #2 on the transmitter.
4. Press button #1 three times.
5. Release button #2, the LED flashes for 10 seconds. A successful initialization is followed by the doors locking/unlocking.
6. All remaining transmitters must be initialized by completing steps 3 through 5.
7. When initialization is complete, switch KI. R back on.

If the acknowledgement signal of the doors locking/unlocking does not follow the initialization procedure, the process must be repeated. If the ignition is switched on during the process, the initialization procedure is cancelled.
