Bulb Replacement

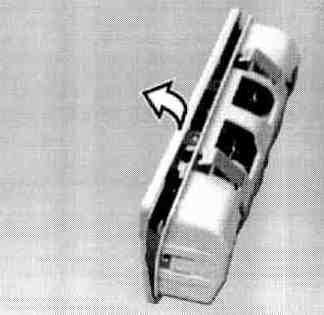

Unclip lens/reflector.

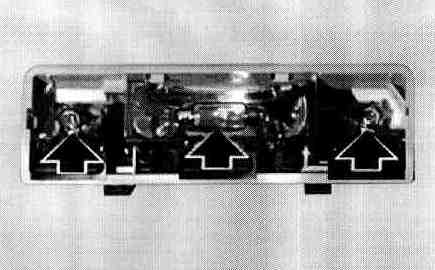

Lift out light bulb.

Caution!
Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean dot or packaging of light bulb.
