Antitheft Motion Sensor: Service and Repair

65 75 071 - Removing and installing (replacing) module for passenger compartment sensor

Necessary preliminary tasks:
- Remove make-up mirror and front console insert 51 44 180 - Removing and installing / replacing rear console insert / make-up mirror in rear compartment.

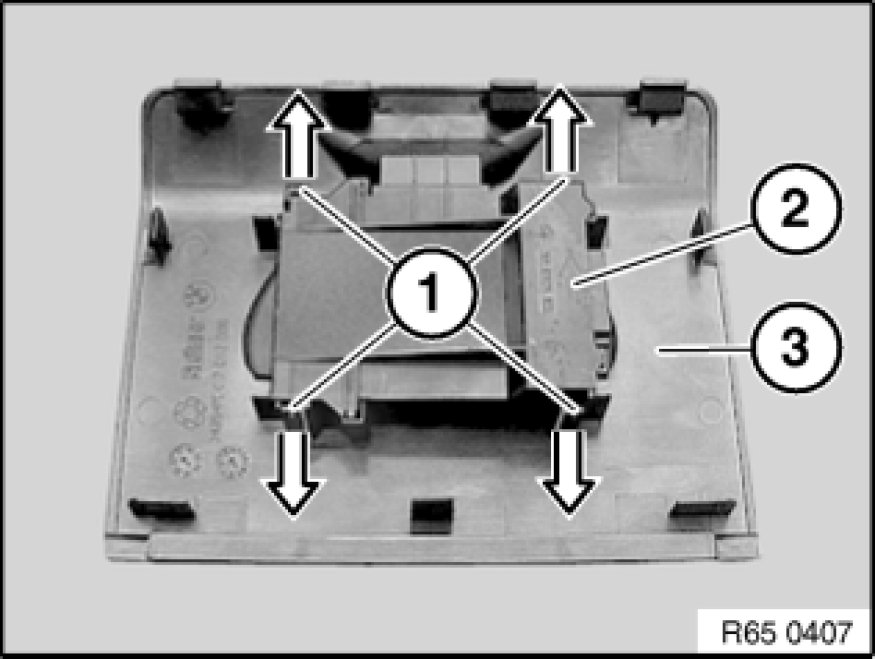

Open detent lugs (1) in direction of arrow and remove module for passenger compartment sensor (2) from front console insert (3).

Replacement:
Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- Car & Key Memory
- CD "CIP"
