Removing and Installing/Replacing Left Differential Pressure Sensor




13 62 025 - Removing and installing/replacing left differential pressure sensor (N73)





Necessary preliminary tasks:
- Switch off ignition.

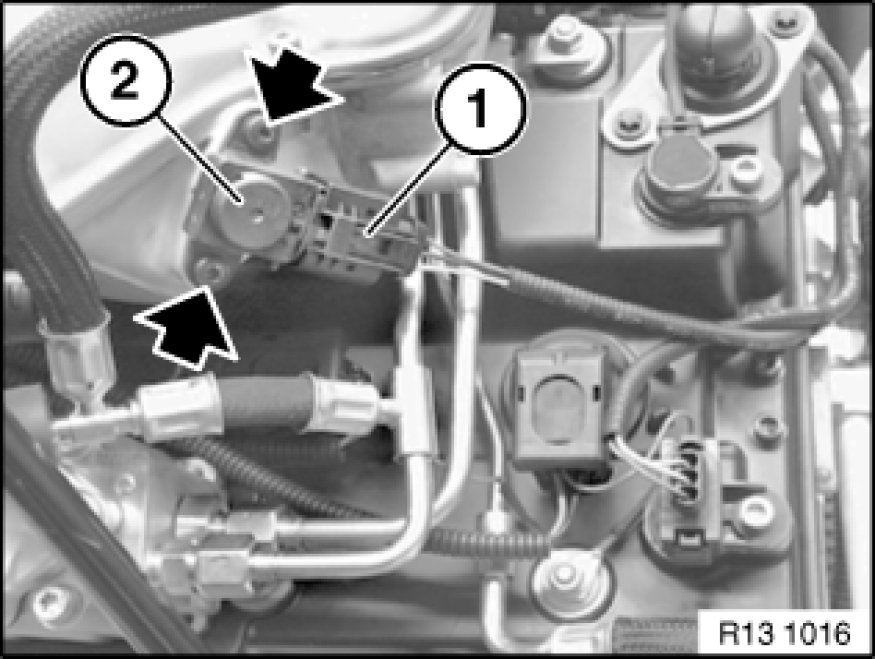

Unlock plug (1) and remove.
Release screws on differential pressure sensor.
Pull differential pressure sensor (2) out of intake air manifold.





Assemble engine.
Check function of DME.
