Replacing Receiver Module of Global Positioning System (GPS)




Removing And Installing/Replacing Receiver Module Of Global Positioning System (GPS) (Convertible)

Remove holder for radio receiver.

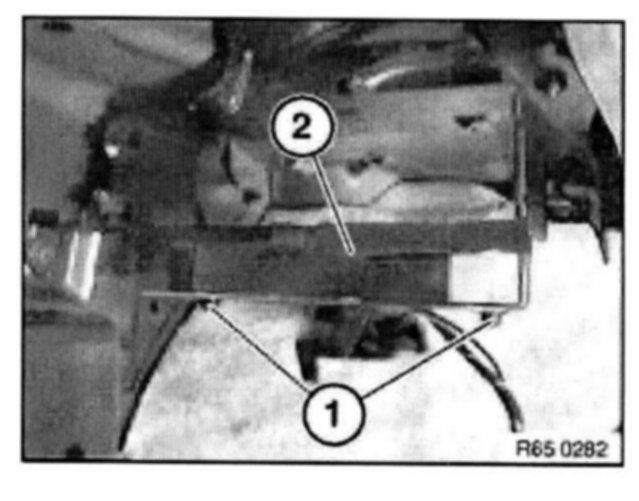

NOTE: Secure receiver module of Global Positioning System (2) against falling out.


Unscrew nuts (1).
Remove receiver module of Global Positioning System (2) from mount and disconnect plug connections.
