Power Mirror Switch: Service and Repair

Replacing Switch For Outside Mirror

Driver's side:

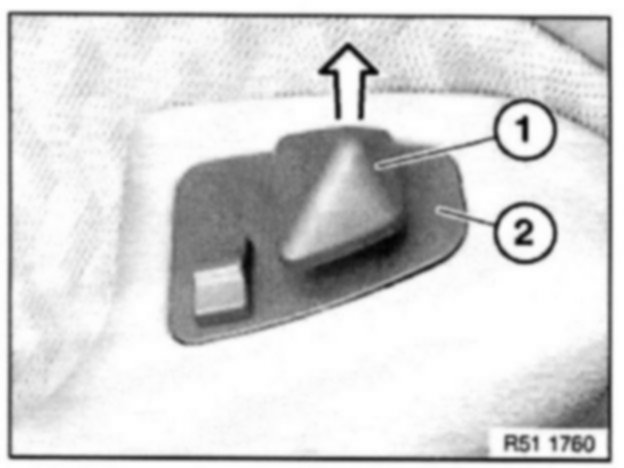

Pull off control knob (1) from mirror adjustment switch (2).

NOTE:
When detaching mirror adjustment switch (2):
Pull upwards only, do not press sideways (risk of damage).

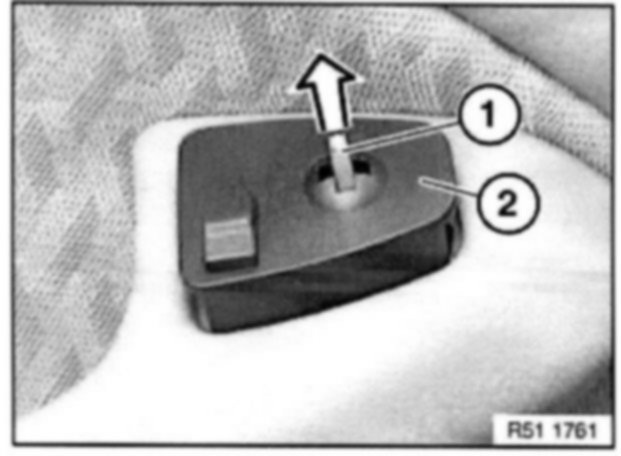

Using pointed pliers on rod (1), pull up mirror adjustment switch (2) as far as shown in illustration and lift out completely by hand.

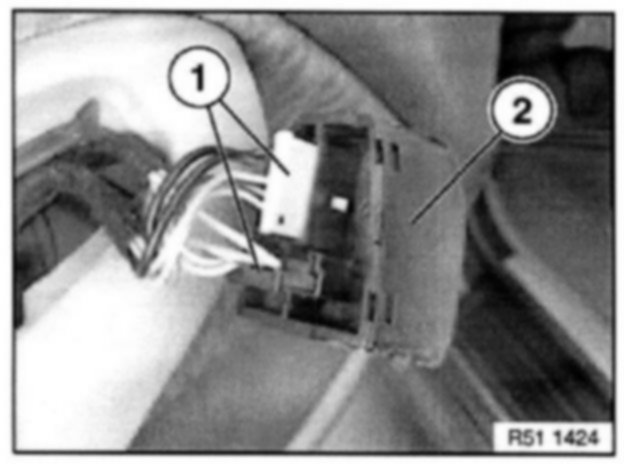

Disconnect plug-in connections (1) and remove mirror adjustment switch (2).
