Removal and Replacement
Removing And Installing/Replacing Heater BulkheadRemove microfilter for passenger compartment ventilation.

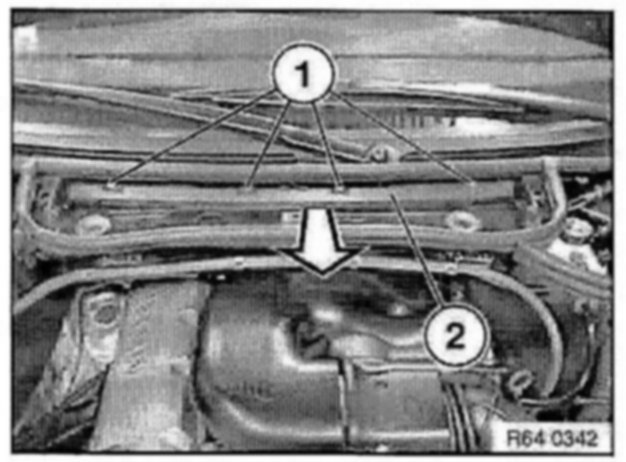

Unclip retainers (1) and feed cable out of cable duct.

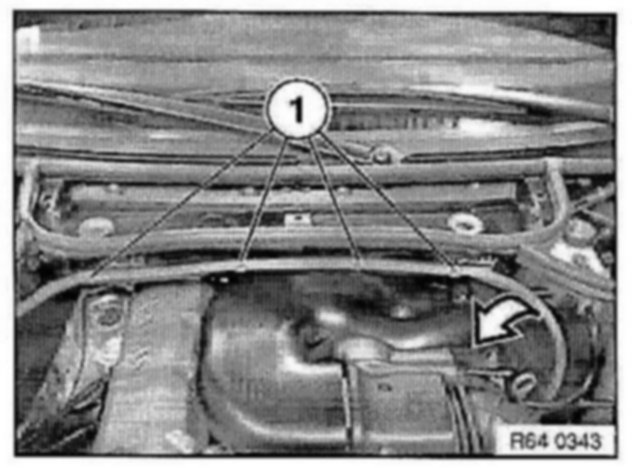

Release screws (1) and remove microfilter housing towards front.
Detach rubber strip (1).
Release locks (2) and pull side trim forwards a little.

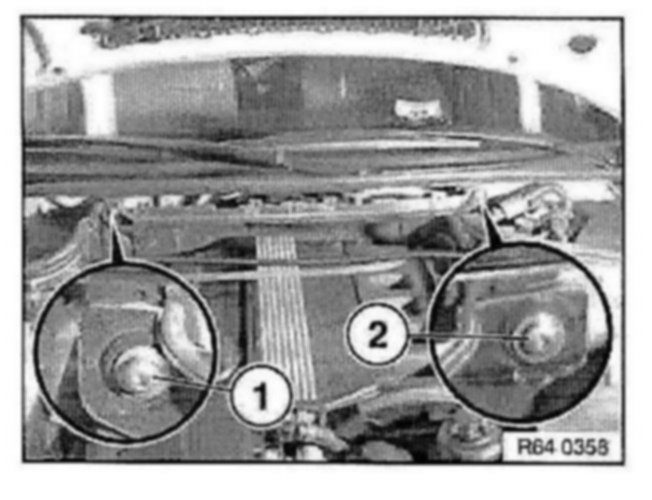

Remove screws (1 and 2).
Lift out heater bulkhead.
