Combination Switch: Service and Repair
Removing And Installing/Replacing Fixture For Steering Column SwitchRemove steering wheel.
Remove upper and lower sections of steering column trim.

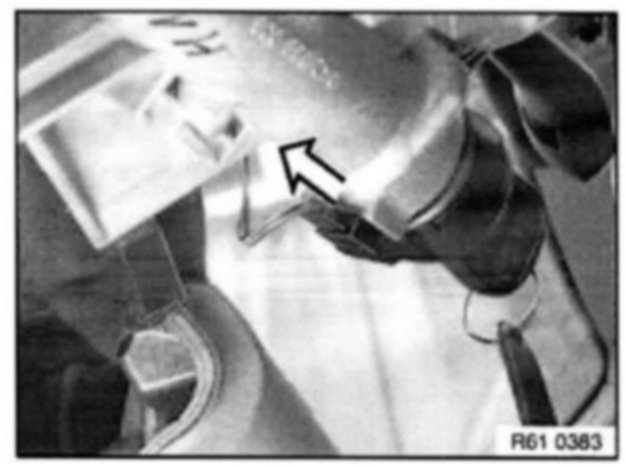

Disconnect plug from ring antenna.

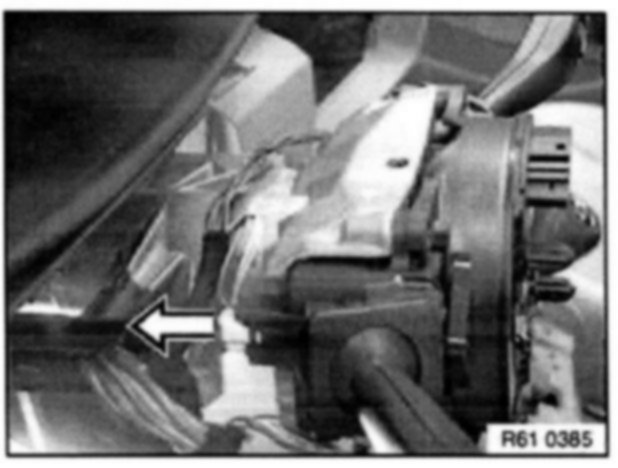

Disconnect plug from
wiper switch.

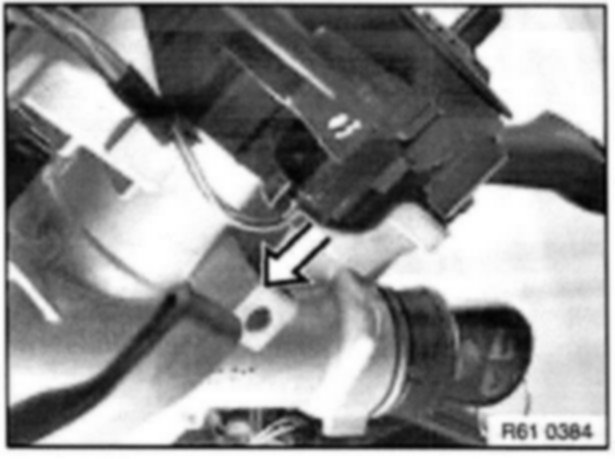

Disconnect plug from turn-indicator lever.

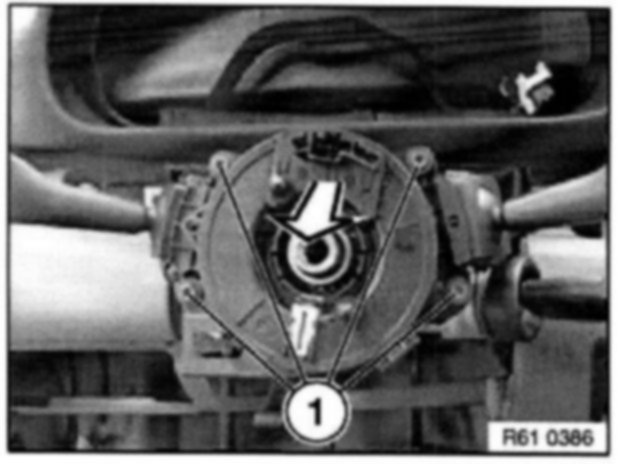

Unfasten screws (1) and remove fixture.
