Adjusting Toe-In on Front Axle (With KDS)
Adjusting Toe-In on Front Axle (With KDS) Move

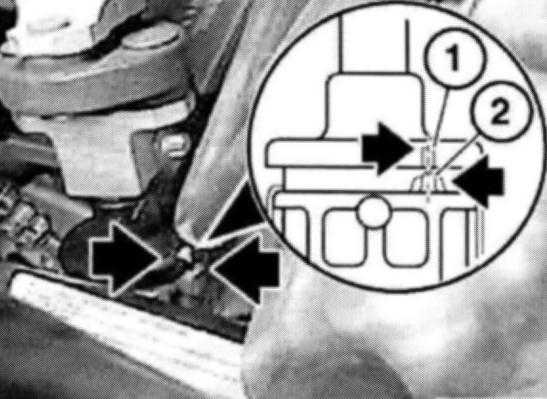

wheels and steering gear to straight-ahead position (markings on cap (1) and on housing (2) must line up).

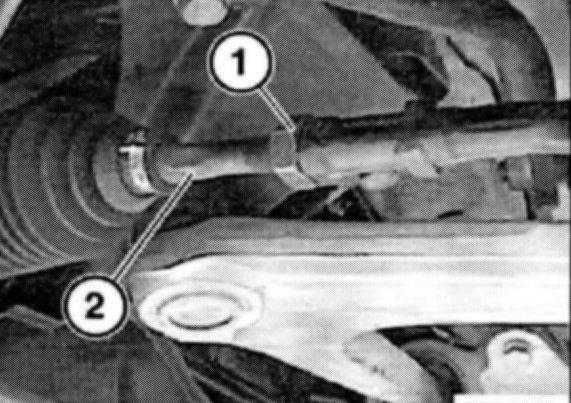

Slacken clamping nut (1) on steering tie rod.
Adjust wheel toe-in to specified value by turning tie rod at hexagon head (2).
Installation: Make sure steering packing is not turned.
Tie rod clamping nut
45 Nm
