Removing and Installing or Replacing Rollover Sensor

Removing And Installing Or Replacing Rollover Sensor

Special tools required:
- 00 2 140

WARNING:
Disconnect battery negative lead.

Remove rear seat backrest.

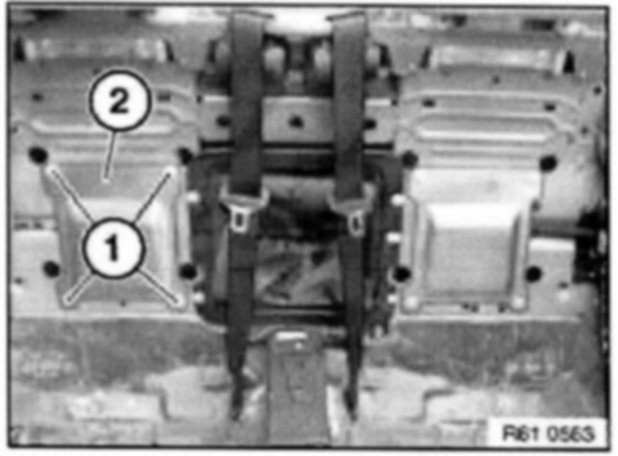

Release screws (1) and remove cover plate (2).

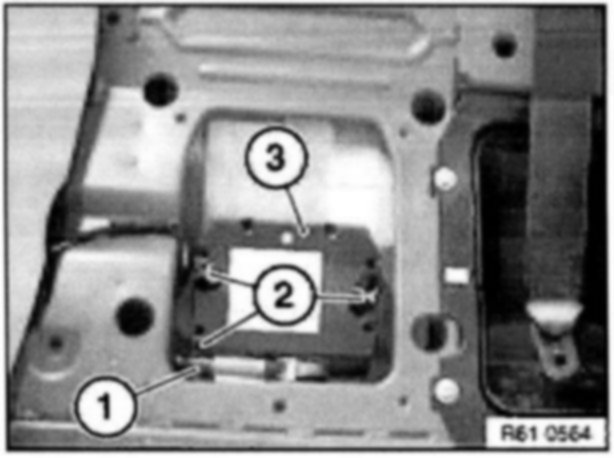

Release wiring harness holder (1) and disconnect associated plug connection.
Release screws (2) with special tool 00 2 140 and remove rollover sensor (3).

Replacement:
Carry out coding/programming.
