Replacing Pitch Sensor




Removing And Installing/Replacing Pitch Sensor

touring only:
Remove rear speaker on right.

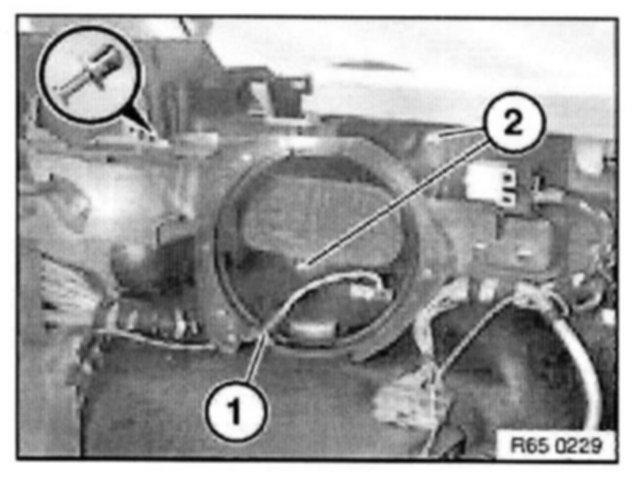

Pull out cable guide (1).
Remove expansion rivet and release nuts (2).

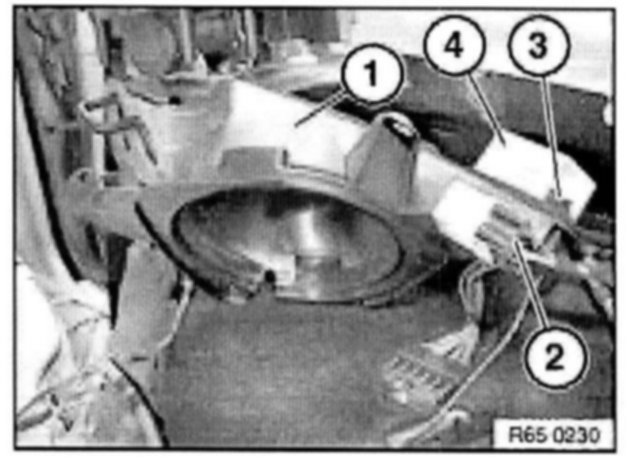

Lift off resonance body (1) slightly.
Detach relay receptacle (2).
Disconnect plug connection (3), unclip tilt sensor (4) and remove.

Saloon/sedan, coupe, convertible:
Release right trunk wheel arch trim in rear area.

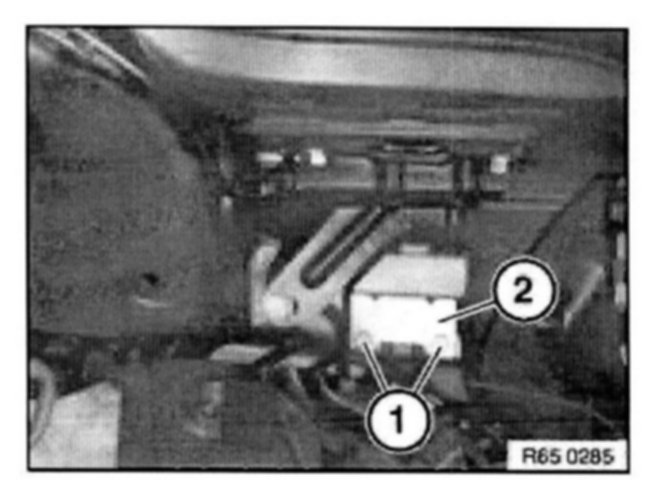

NOTE: Secure nuts (1) against falling out.


Unscrew nuts (1).
Remove holder for tilt alarm sensor (2) towards inside.
Disconnect plug.

Replacement:
Unclip tilt sensor from holder.
