Ignition Switch Lock Cylinder: Service and Repair

Replacing Steering-Lock Cylinder

Remove ring antenna.

If necessary, unlock interlock through hole (1).
With ignition lock key, turn lock barrel to required position "R"=radio, windscreen wipers, etc.

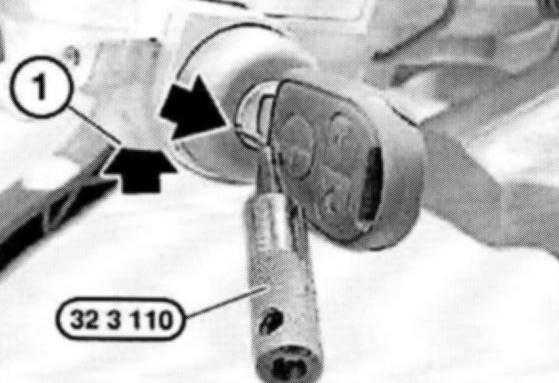

Press special tool 32 3 110 into locking cylinder hole and remove locking cylinder.

Note: The lock (1) is unlocked with special tool 32 3 110 and the locking cylinder can now be removed. If necessary, turn special tool in hole.
