Ignition Switch: Service and Repair
Ignition Switch, Replacement Remove the bottom section of the steering column panelling.

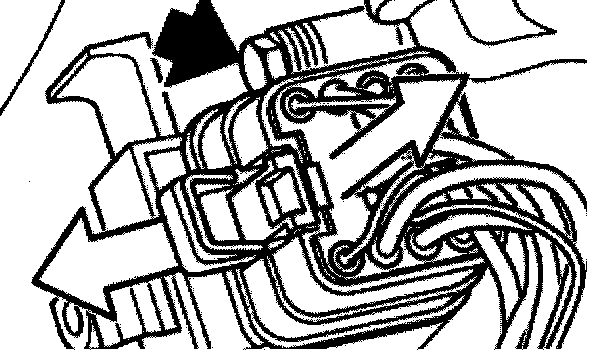

Unlock connector from ignition starter switch and remove.

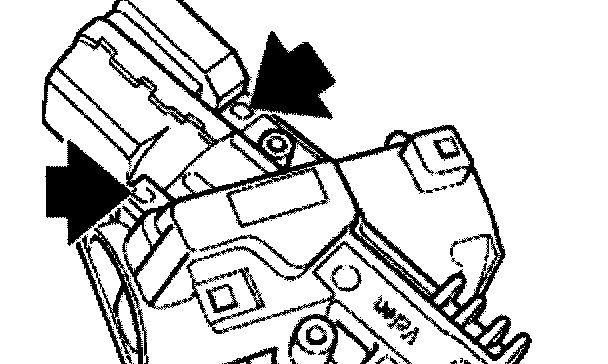

Remove protective paint and unfasten grub screws.
Remove ignition starter switch.
Installation note.
Secure headless screws with varnish.
