Gradient Sensor ( Inclinometer/Accelerometer ): Service and Repair
Removing and Installing/Replacing Longitudinal Acceleration Sensor (SMG)Remove right front seat.
[1][2]Sedan, Coupe and WagonRemove right entrance cover strip.

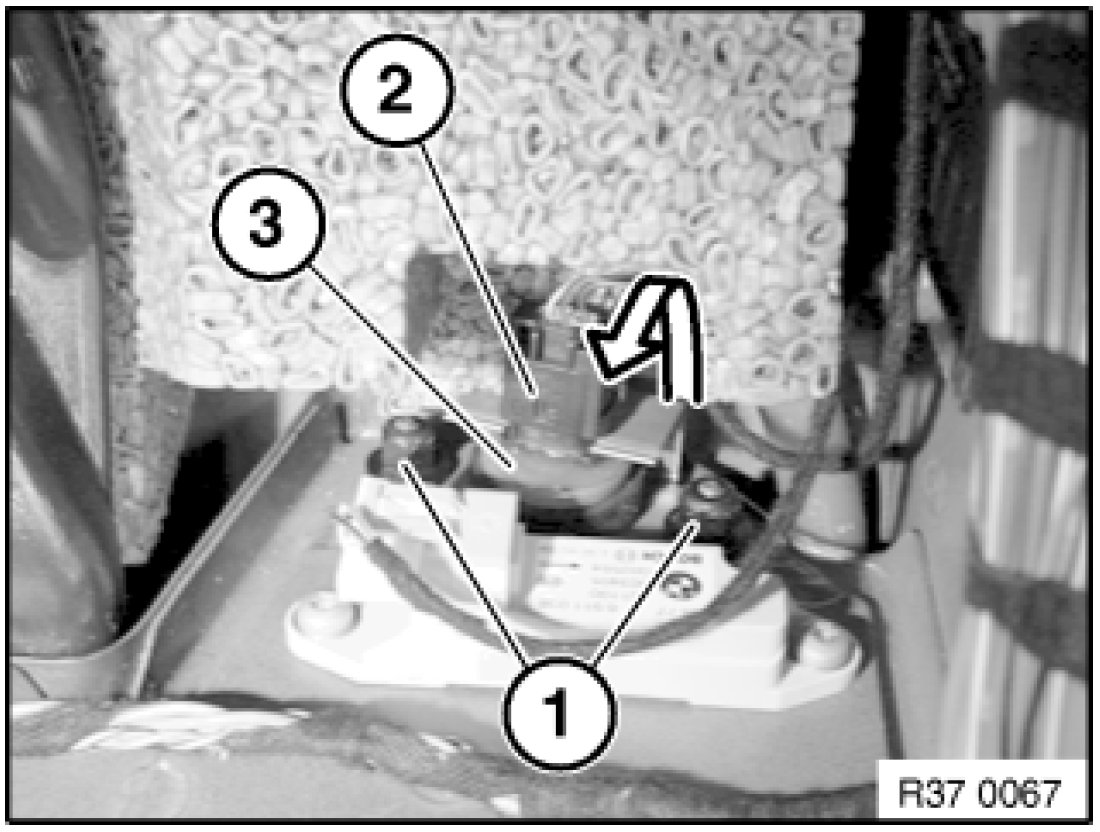

Service and RepairLift footwell carpet and expose longitudinal
acceleration sensor.
Unscrews nuts (
1).
Unlock and disconnect plug connection (
2).
Pull out longitudinal
acceleration sensor (
3).
