Wiper and Washer Systems: Service and Repair
Removing And Installing Complete Wiper ConsoleRemoving heater bulkhead.
Remove cover for cowl.

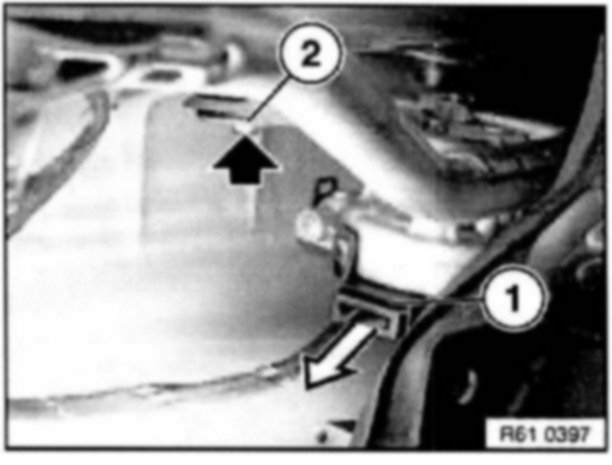

Remove connector (1). Release screw (2).
Installation:

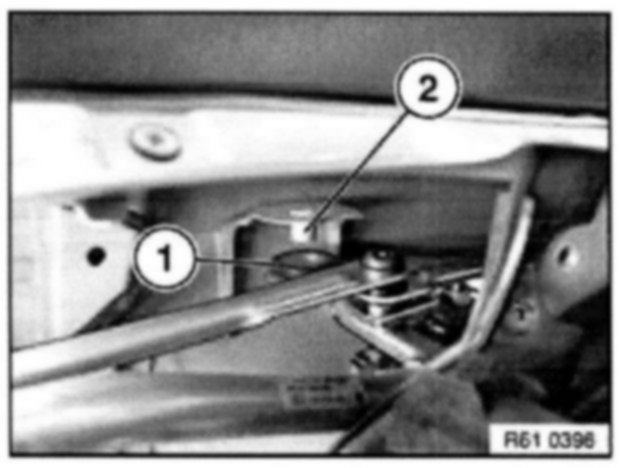

Fit rubber mount (1) of wiper console on pin (2).

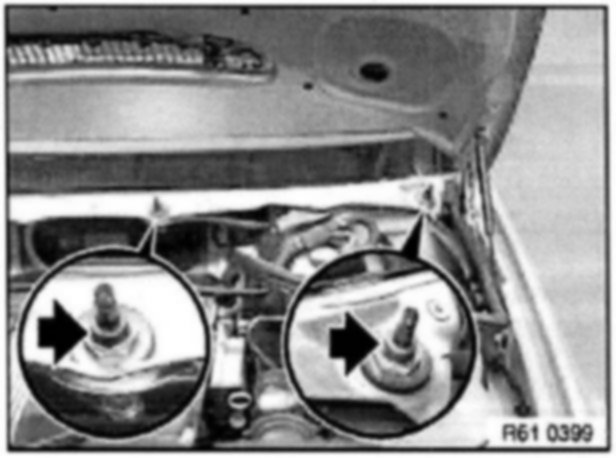

Release nuts and feed out complete wiper mounting bracket through opening in heater bulkhead.
