Navigation Module: Service and Repair
Removing And Installing/Replacing Navigation Computer With CD-driveReplacement:
Load operating software and carry out coding (refer to Diagnosis and Information System).
Remove flap in luggage compartment trim panel on left.

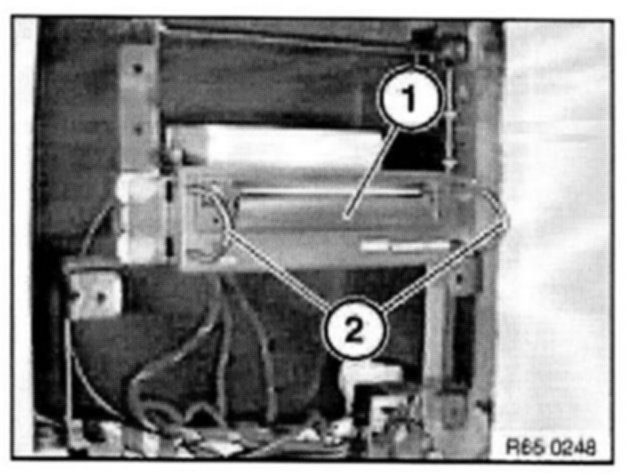

Release navigation computer (1) with special tool 65 5 400 (2) and pull out.
Unfasten plug connection.
