Removing and Installing/Replacing Interior Antenna for Comfort Access System (Front)

61 35 953 - Removing and installing/replacing interior antenna for comfort access system (front)

Necessary preliminary tasks:
- Remove audio system controller Removing and Installing/Replacing Audio System Controller
- Remove storage compartment 51 16 200 Removing and Installing Storage Compartment

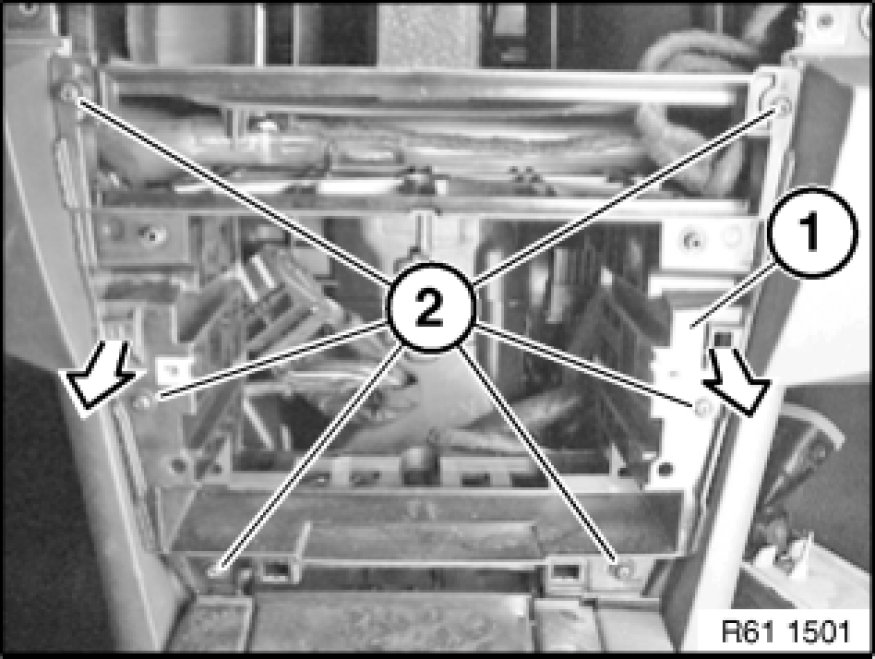

Release screws (2).
Remove middle function carrier (1) in direction of arrow.

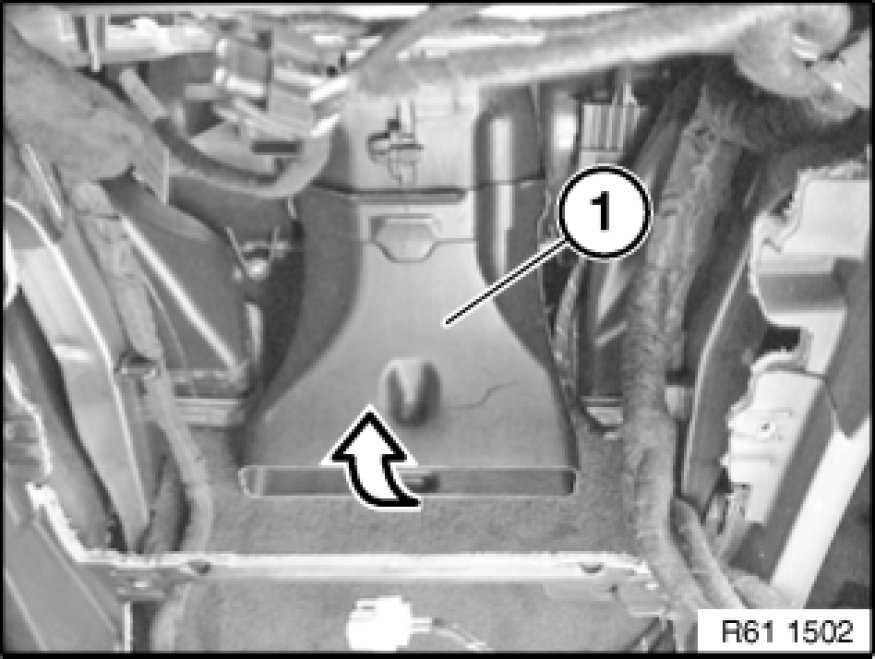

Remove middle air duct in direction of arrow.

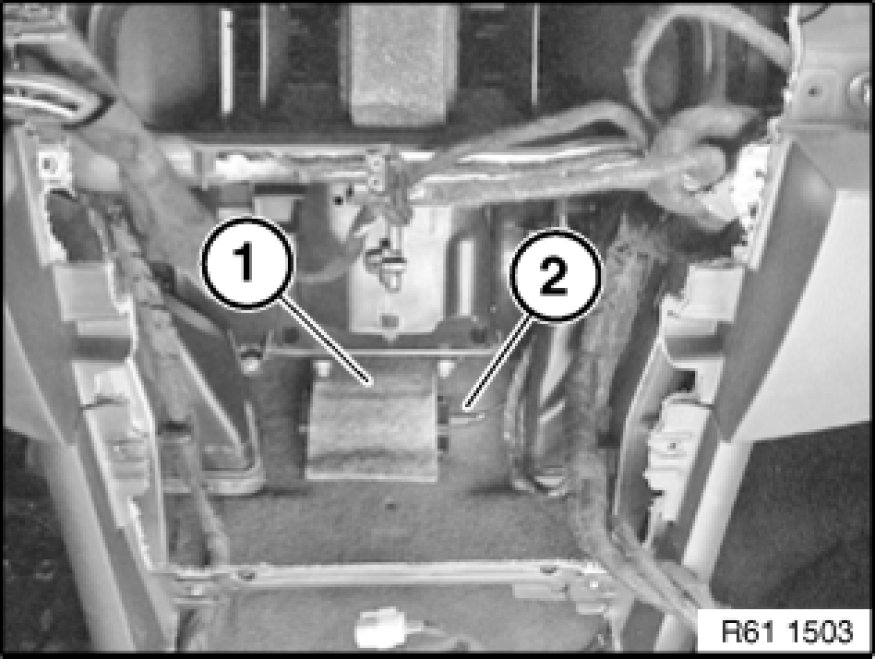

Detach felt (1) from interior antenna for comfort access system (2).

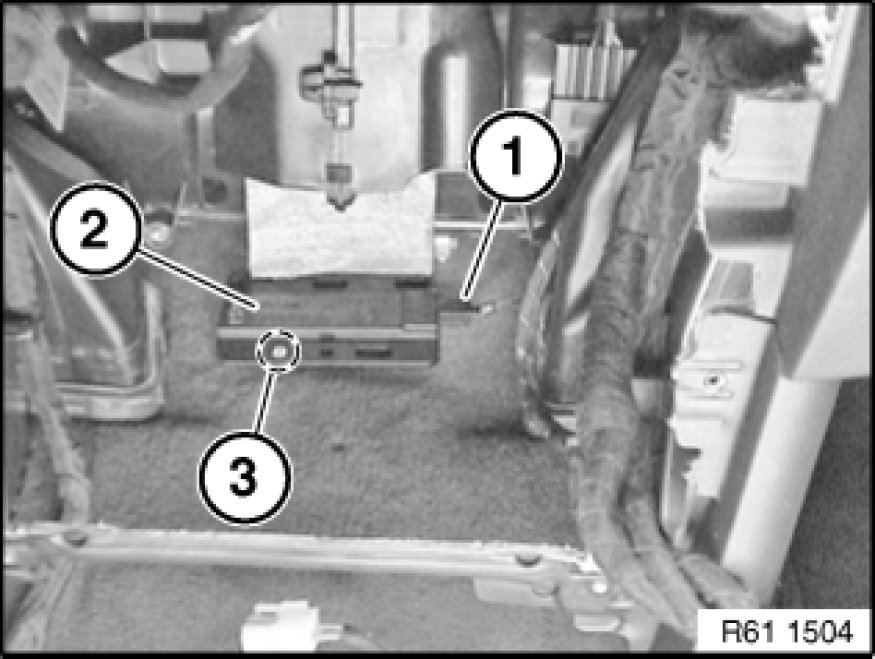

Disconnect plug connection (1).
Unclip interior antenna for comfort access system (2) from clip (3).
