Removing and Installing/Replacing Rear Parcel Antenna for Comfort Access System

61 35 965 - Removing and installing/replacing rear parcel antenna for comfort access system

Necessary preliminary tasks:
- Remove both trims for roof pillar at rear (rear) Removing and Installing/Replacing Trim for Rear Left or Right Roof Pillar (Rear)
- Remove both trims for roof pillar at rear (front) Removing and Installing/Replacing Trim for Rear Left or Right Roof Pillar (Front)
- Remove backrest for rear seat Removing and Installing/Replacing Backrest for Rear Seat (Basic)
- Remove panel for parcel shelf

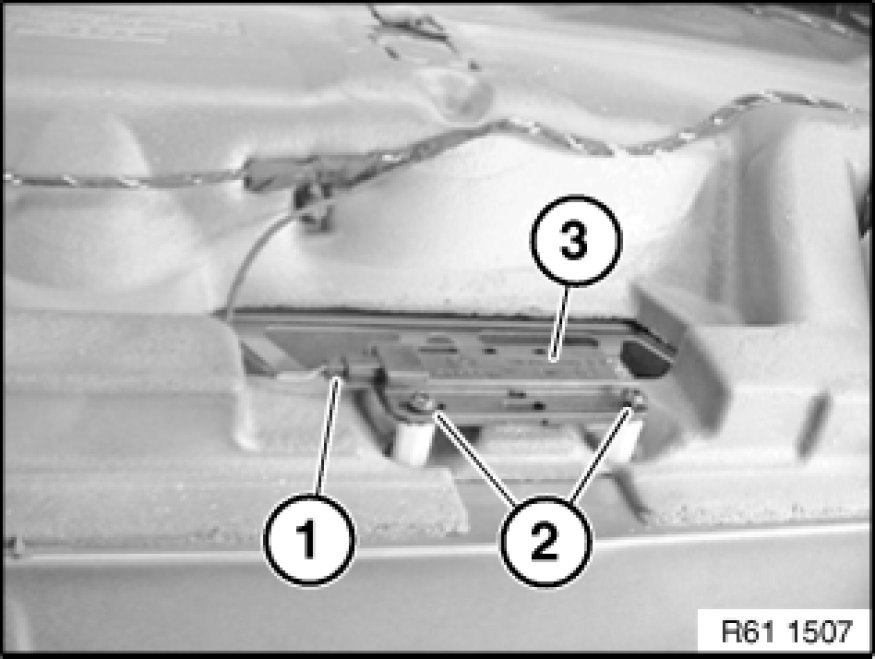

Disconnect plug connection (1).
Unfasten screws (2).
Remove interior antenna for comfort access system (3).
