Removing and Installing/Replacing Multifunction Pan

51 71 ... Removing and installing/replacing multifunction pan







Necessary preliminary tasks:
- Remove battery

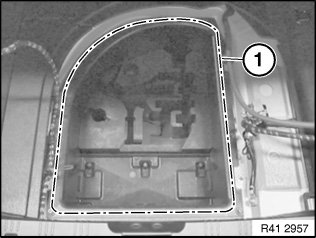

Release screws (1).

Carry over the work step shown symmetrically to the other side of the vehicle.

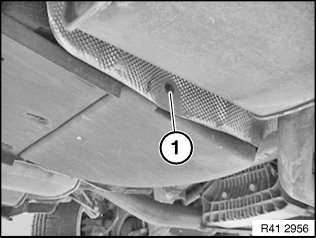

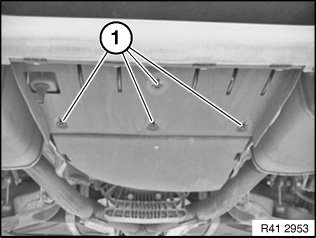

Release screws (1).







Remove insert shells (1).

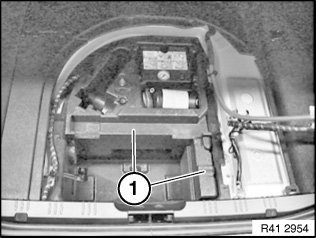

Remove control units (1), lay to one side and secure.

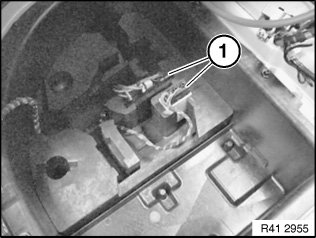

Release nuts along line (1) and remove multifunction pan.







Tightening torque 51 71 19AZ.







Gasket (1) on multifunction pan must not be damaged; replace multifunction pan if necessary.
