Removing and Installing/Replacing Center Console Switch Cluster (Up To 03/07)
61 31 052 - Removing and installing/replacing center console switch cluster (up to 03/07)
Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).
Necessary preliminary tasks:
- Remove middle trim for instrument panel 51 45 310 - Removing and installing (replacing) center instrument panel trim (up to 03/07)

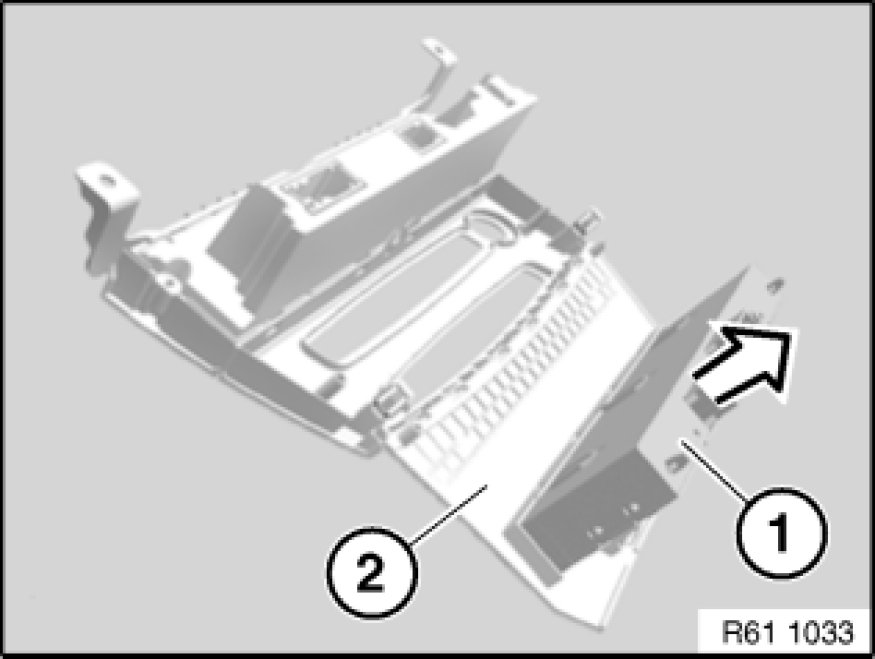

Unclip switch cluster in center console (1) all round and remove from middle trim for instrument panel (2).
Replacement:
Carry out programming/coding Programming and Relearning.
