Pressure Sensor

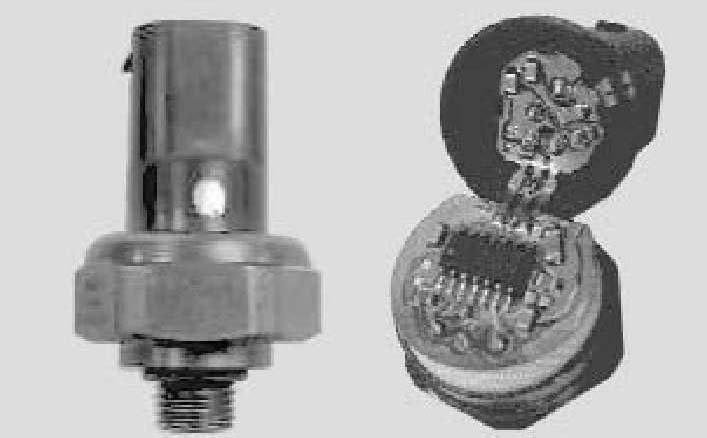

Pressure Sensor The pressure sensor is located in the high side pressure line between the condenser and the evaporator near the passenger side strut tower.
The sensor sends the IHKA control module an analog signal between 0.4V and 4.6V as a representation of system pressure.
The 5V supply is provided by the IHKA control module and the sensor current consumption is < 20mA.
