Map Light: Service and Repair

63 31 210 - Removing and installing/replacing rear reading light

Special tools required:
- 00 9 340 00 9 340 Disassembly Aid (2 Pieces)

Warning!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).

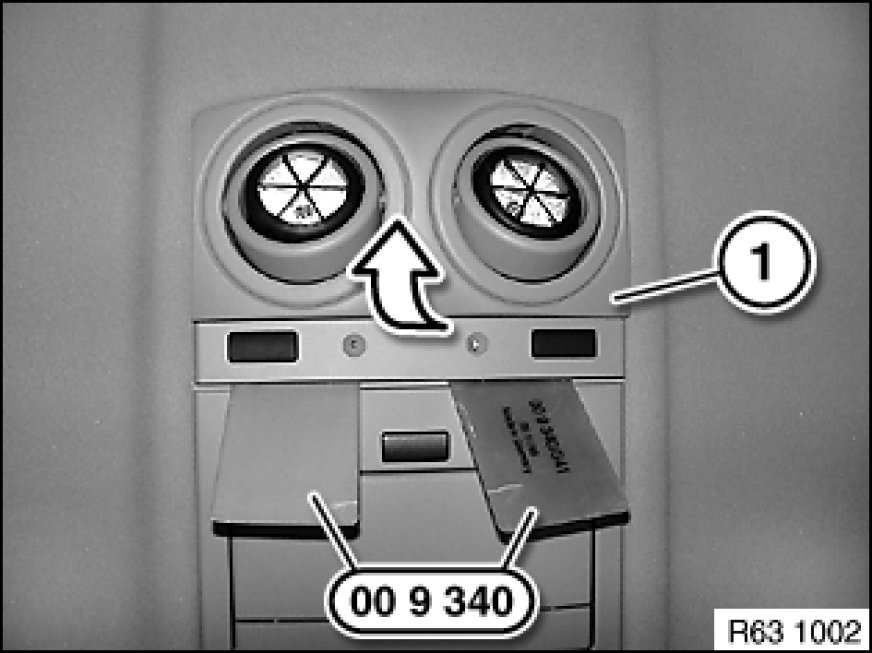

Lever out reading light (1) with special tool 00 9 340 00 9 340 Disassembly Aid (2 Pieces) as illustrated.

Disconnect plug connection underneath and remove reading light (1).

Replacement:

If necessary, modify bulbs Replacing Bulb For Rear Reading Light.
