New System Description

New System Description

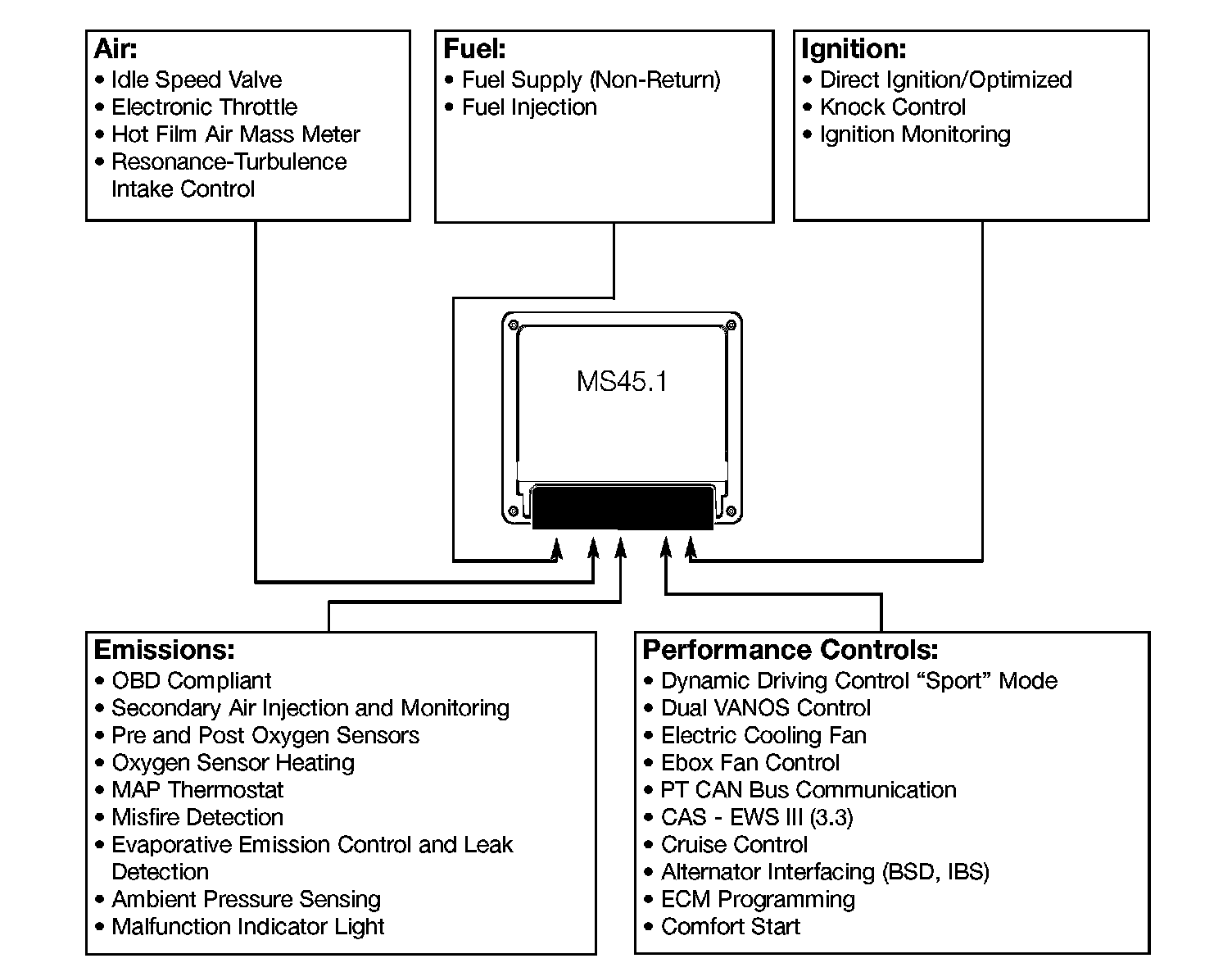

Fig. 1:

The MS45.1 system is a further enhancement of the MS45 system currently used on M54 engines and manages the following functions: See Fig. 1

The basic engine management inputs, processes and outputs are not included here because they have not changed, refer to previous model series systems using Siemans MS 42 XXX controls.

Also, refer to (E85) Z4 for additional detailed information on the MS45 Engine Management System.MS45 With M54 Engine

The following section is based on new controls / functions for MS45.1 system.
Engine Management
