Lighting - Interior Lights Inop After Vehicle Programmed
SI B 63 02 09Lights
May 2009
Technical Service
SUBJECT
Interior Lights Inoperative, FC A411
MODEL
E60 (5 Series)
E61 (5 Series Sports Wagon)
SITUATION
After programming to integration level E060-08-09-515 or later, one or more of the following interior lights may no longer operate: vanity lights, reading lights, glove compartment lights and luggage compartment lights. A vehicle test shows that fault code A411 (short circuit_VA) is stored in the Body Basic Module (KBM).
CAUSE
Body Basic Module (KBM)
CORRECTION:
Do not replace parts.
Work through the test plan using ISTA D2.13.0 or later. The required test pan can be accessed as follows:
"Service Function", using the path "Service functions / Body / Body basic module / Front axle calibration Body Basic Module / ABL B6100_KBMKAL";
or
"Symptom path" using the selection "Assisted Troubleshooting / System oriented / 6300 Lights / 630031 Interior lighting failed after programming / ABL B6100_KBMKAL".

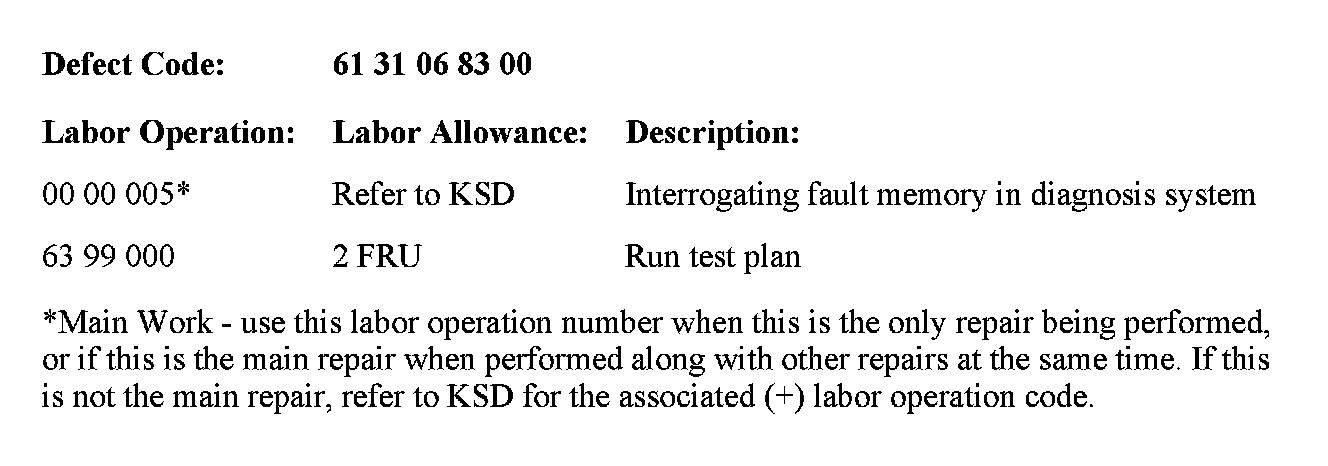

WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty.
