Replacing Seat Cover for Rear Seat

52 24 400 - Replacing seat cover for rear seat





Special tools required:
- 52 0 050 52 0 050 Pliers






Necessary preliminary tasks:
- Remove rear seat Removing and Installing/Replacing Rear Seat

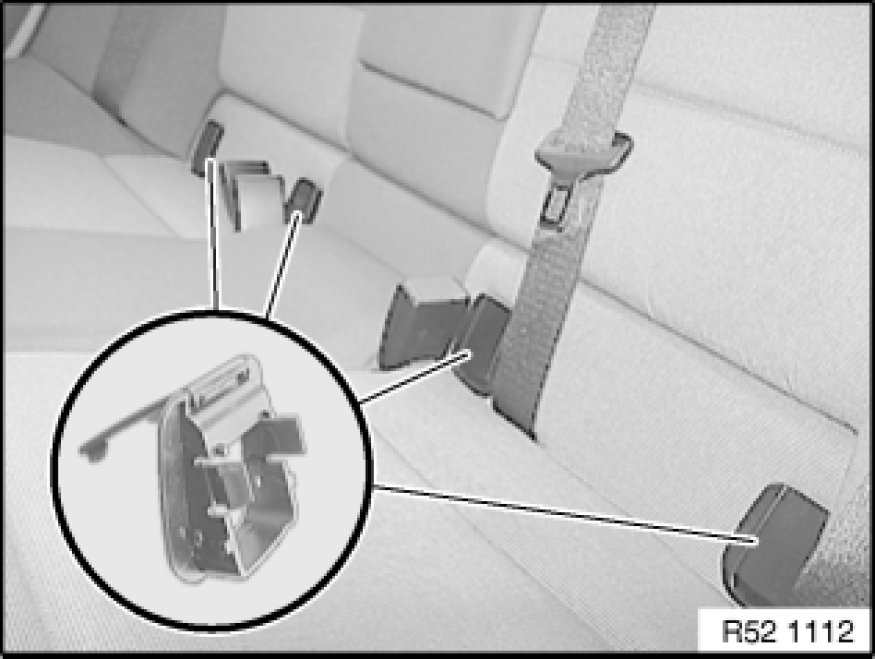

Unclip Isofix protective caps.

Installation:
Make sure Isofix protective caps are correctly engaged.

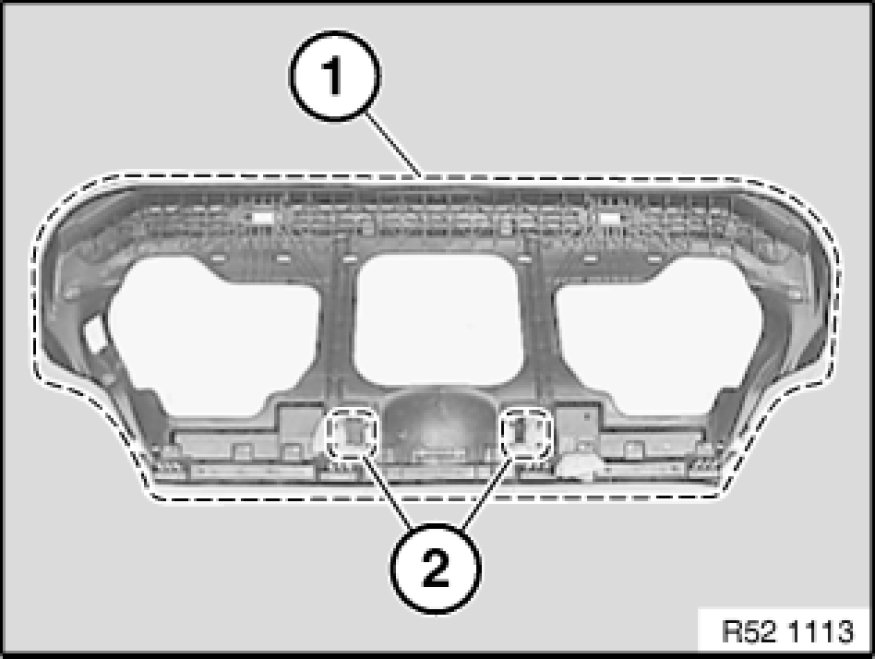

Lever out welt in area (1) with plastic wedge.
Unhook seat cover in area (2).





Detaching cover and padding:

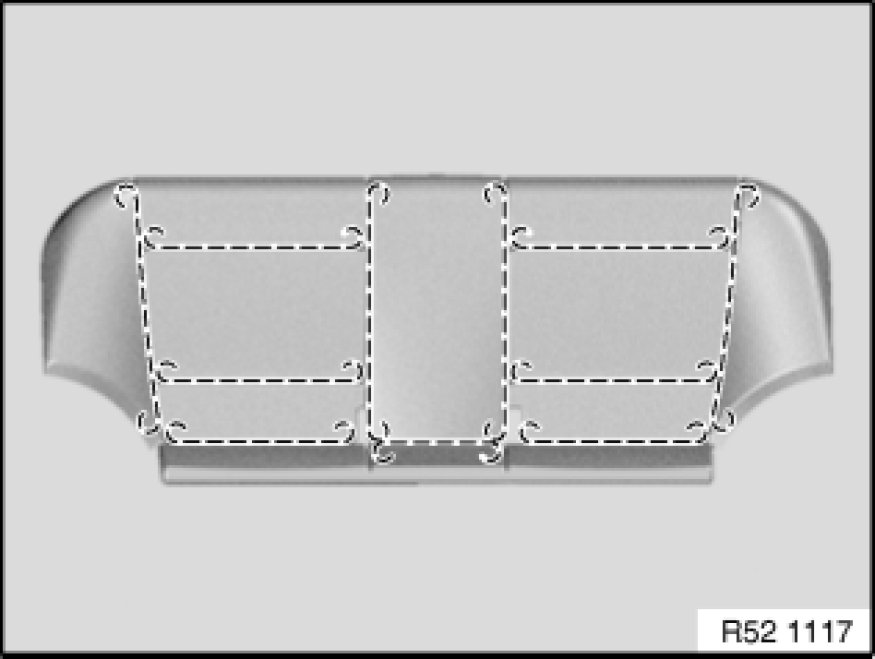

- Release all retainers in marked area.
- Remove seat cover from padding.
- Remove remaining retainers from cover and padding






Installation:

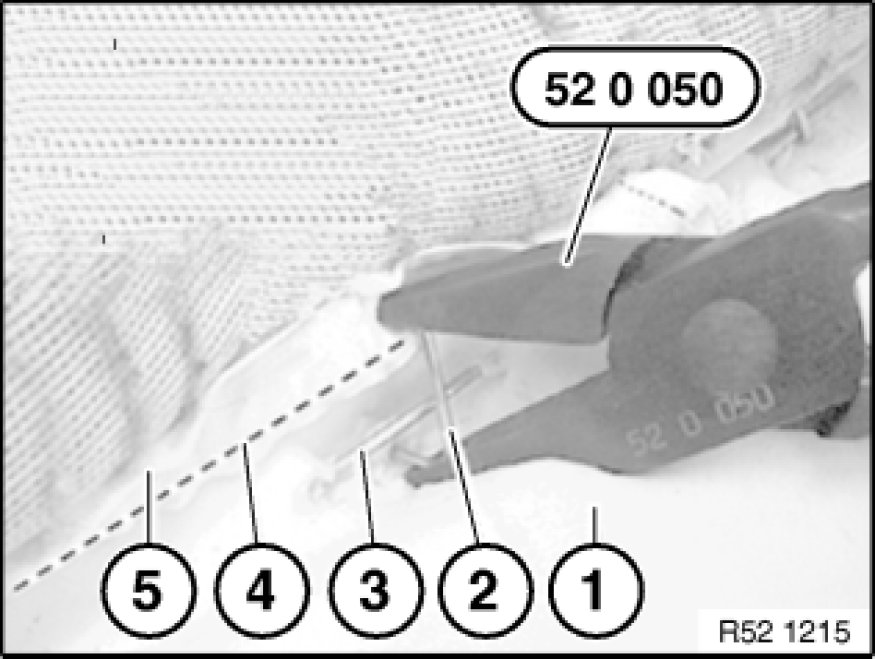

Insert new retainer (2) with special tool 52 0 050 52 0 050 Pliers and bend closed.

1. Padding
2. Retainer
3. Trim thread in padding
4. Trim thread in seat cover
5. Seat cover





Replacing cover:
- Pull all trim wires out of seat cover
- If necessary, cut in take-up for trim wires of new cover
- Push trim wires into new seat cover
