Power Trunk / Liftgate Control Module: Service and Repair




61 35 196 - Removing and installing (replacing) control unit for automatic rear lid actuation





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove luggage compartment floor trim
- Remove spare wheel.





Take off cover for control units (1).

Installation Note:
Make sure cover for control units (1) is correctly seated on locating pins (2).

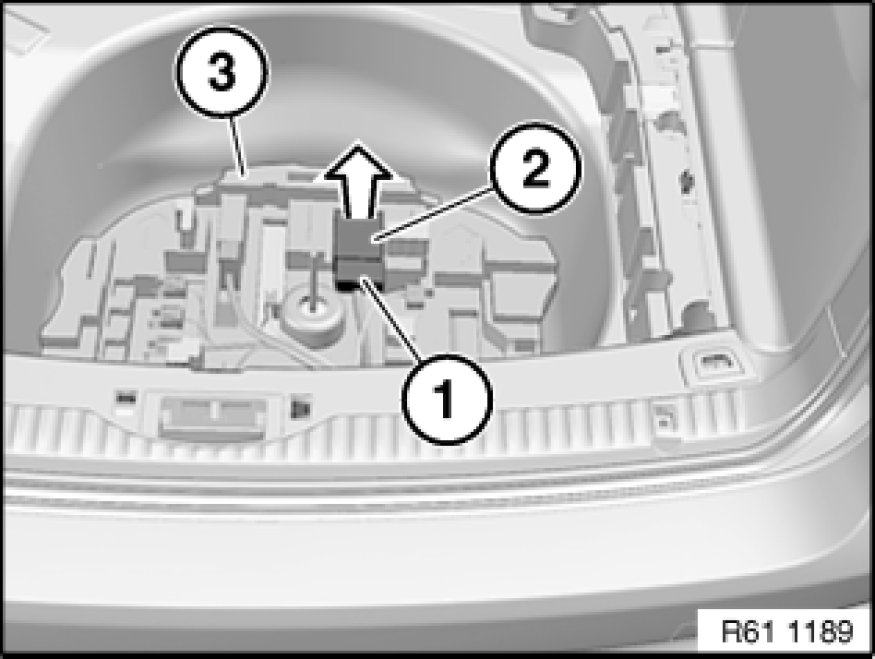

Unfasten plug connection (1) and disconnect.
Lift control unit for automatic rear lid actuation (2) out of mounting for control units (3).





Replacement:
Carry out programming/coding Programming and Relearning.
