Coolant Temperature Sensor/Switch (For Computer): Service and Repair

13 62 531 Replacing Coolant Temperature Sensor (N52T)







WARNING:
Risk of scalding.
Only perform these works on an engine that has cooled down.







Recycling
Catch and dispose of escaping coolant.
Observe country-specific waste disposal regulations.







Necessary preliminary work:
- Read out fault memory of DME control unit
- Turn off ignition

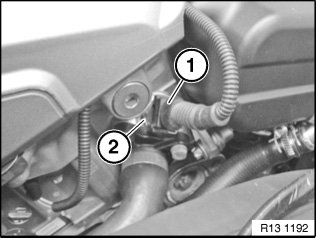

Coolant temperature sensor is mounted on cylinder head at front.
Unlock plug (1) and remove.
Release temperature sensor (2).

Installation:
Tightening torque 13 62 5AZ.
If necessary, top up coolant.
Check cooling system for leaks.







NOTE: Delete fault memory.
