Oil Pressure Sensor: Service and Repair
12 61 280 Removing And Installing/replacing Oil Pressure Sensor (N52T)
WARNING:
Risk of burning.
Only perform this task on an engine that has cooled down.
Necessary preliminary work:
- Remove acoustic cover
Installation location:
Oil filter housing, front left.
Engine oil may emerge when oil pressure sensor is replaced; have a cleaning cloth ready.
Unlock plug (1) and remove.
Release oil pressure sensor (2).

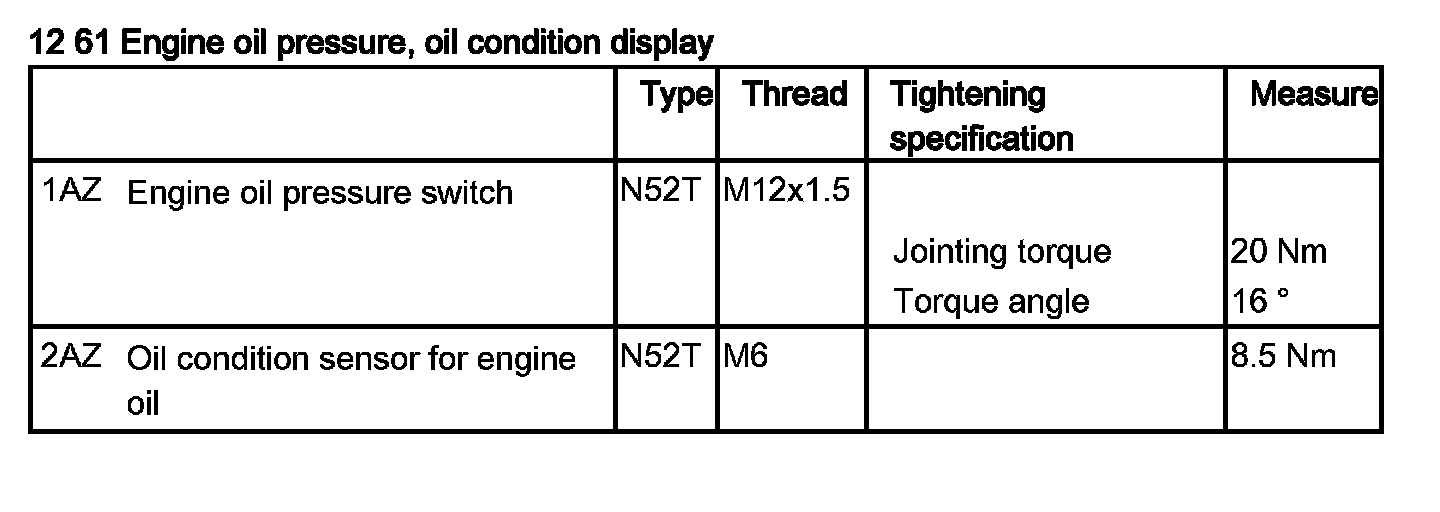

Tightening torque 12 61 2AZ.
Installation note:
Check engine oil level, top up engine oil if necessary.
