Variable Valve Timing Solenoid: Service and Repair

11 36 655 Removing and installing/replacing both solenoid valves (N52T)





Important!
It is essential to observe conditions of absolute cleanliness when removing and installing the intake and exhaust solenoid valves.
Possible malfunction if valves are contaminated:
^ Rough running
^ OBD fault entry
^ Exhaust emission characteristics
^ Low engine power





Necessary preliminary work:
^ Remove engine cover

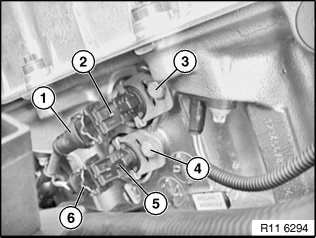

Disconnect plug connection (1) on intake solenoid valve (2).





Release screw (3).

Note:
Secure support and sealing ring against falling down.

Remove intake solenoid valve (2) with holder towards front.

Disconnect plug connection (6) on exhaust solenoid valve (5).

Release screw (4).

Note:
Secure support and sealing ring against falling down.

Remove exhaust solenoid valve (5) with holder towards front.

Tightening torque 11 36 3AZ.

Important!
Risk of mixing up plug connections (1 and 6).

Installation note:
Replace support and sealing rings.





Assemble engine.

Check function of DME.
