Parking Brake Control Module: Service and Repair

34 41 295 Removing and installing control unit for parking brake





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection).





Necessary preliminary tasks:
^ Remove luggage compartment trim panel

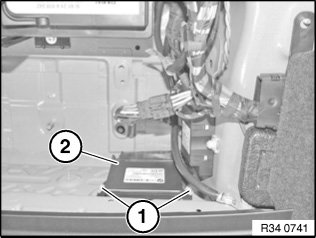

Unscrew nuts (1).

Installation note:
Replace plastic nuts.

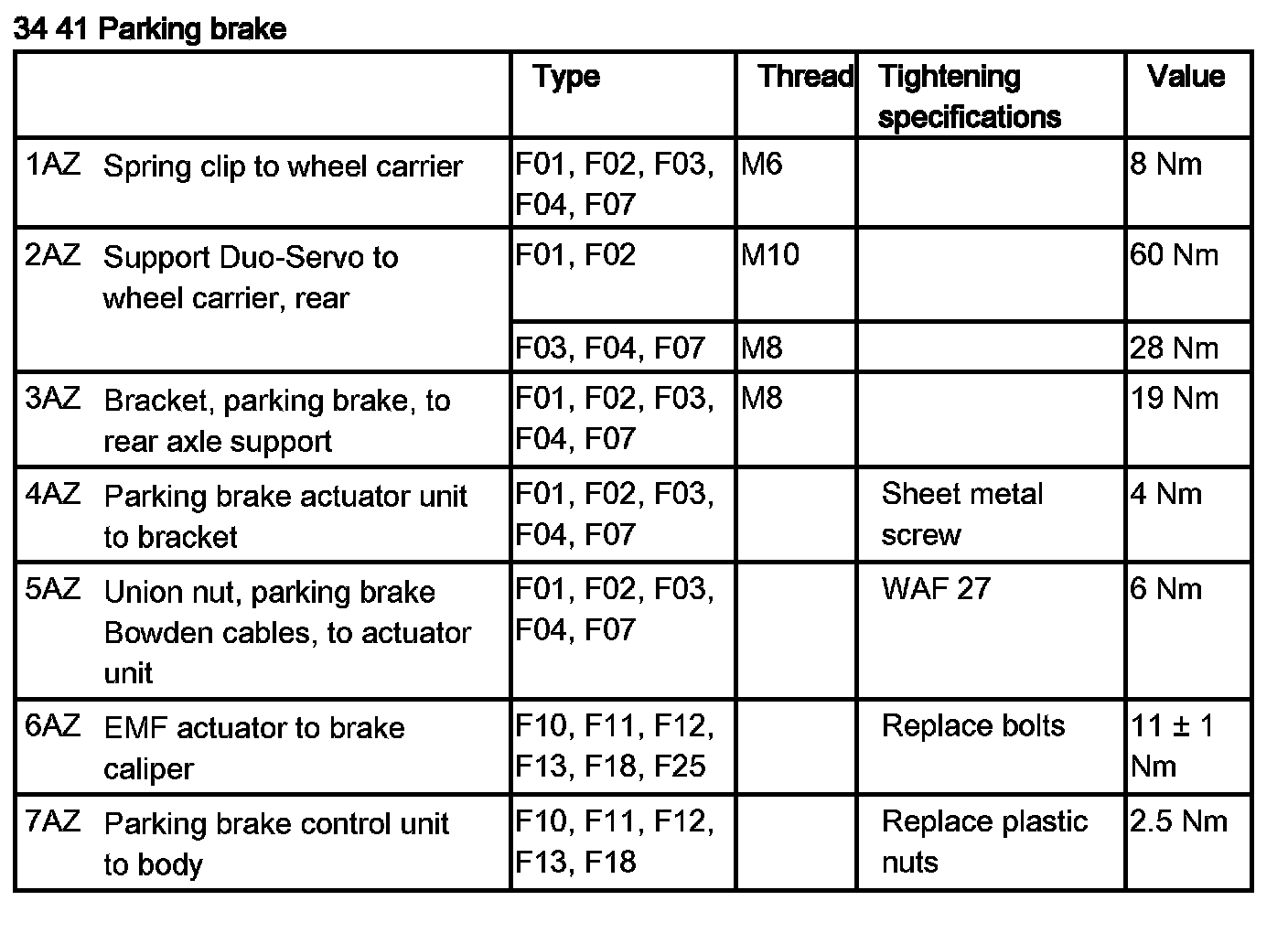

Tightening torque 34 41 7AZ.





Disconnect plug connection (2) and remove control unit.





Replacement:
^ Carry out programming/encoding of control units.
