Removing And Installing/Replacing Bumper Aerial For Comfort Access System




61 35 975 - Removing and installing/replacing bumper aerial for comfort access system





If necessary, extend trailer tow hitch.

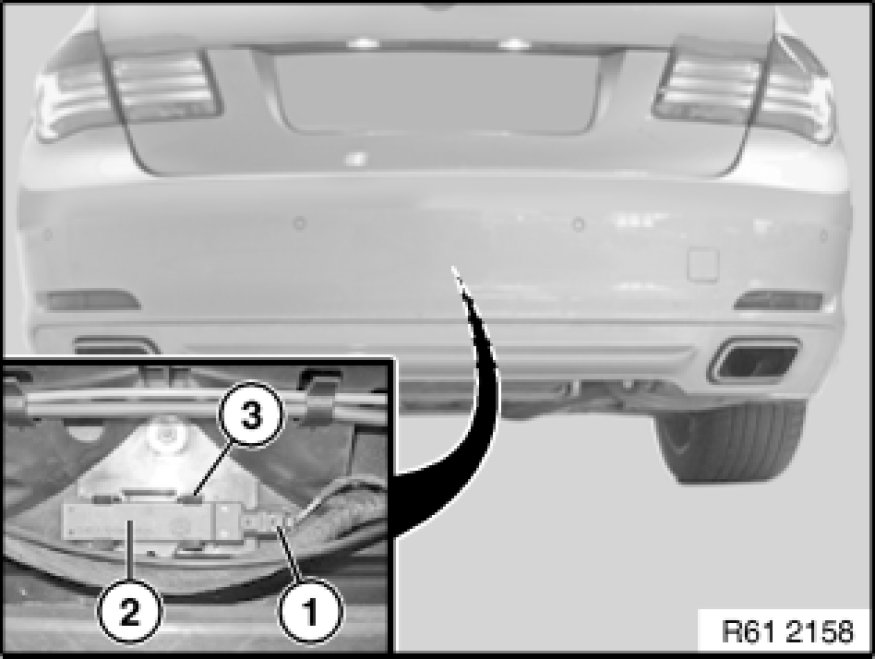

Disconnect plug connection (1).
Unlock and remove bumper aerial for comfort access system (2) from holder (3).

Installation:
Make sure bumper aerial for comfort access system (2) is correctly seated in designated holder (3).
