Removing and Installing/Replacing Interior Aerial/Antenna For Comfort Access System (Front Center Console)




61 35 953 - Removing and installing/replacing interior aerial/antenna for comfort access system (front center console)





Necessary preliminary tasks:
- Remove front storage compartment Service and Repair

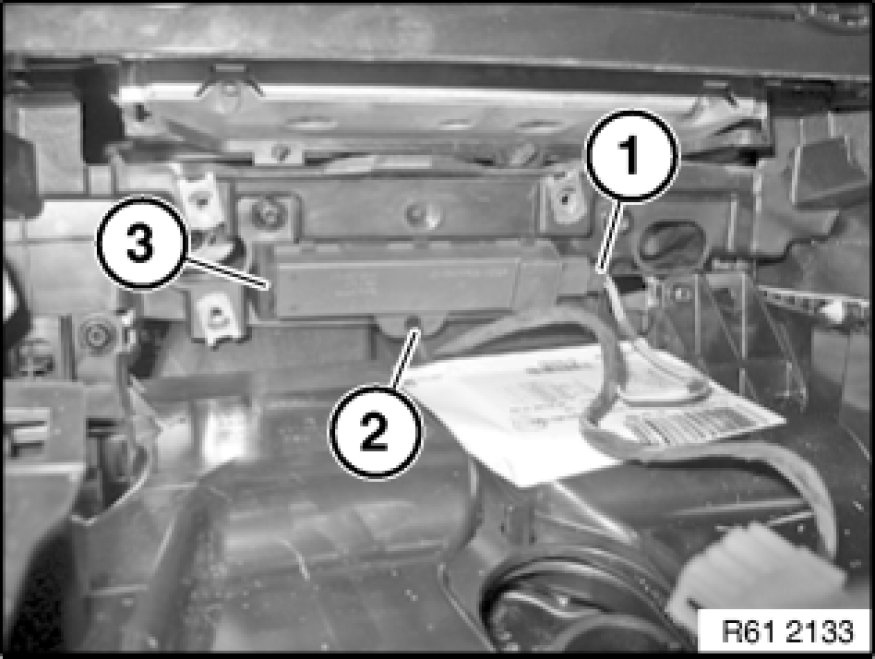

Disconnect plug connection (1).
Unlock and remove interior aerial for comfort access system (2) from holder (3).

Installation:
Make sure interior aerial for comfort access system (2) is correctly seated in designated holder (3).
