Removing and Installing/Replacing Interior Antenna For Comfort Access System (Rear Center Console)




61 35 954 - Removing and installing/replacing interior antenna for comfort access system (rear center console)





Necessary preliminary tasks:
- Remove rear center console trim 51 16 163 Removing and Installing/Replacing Rear Centre Console Cover

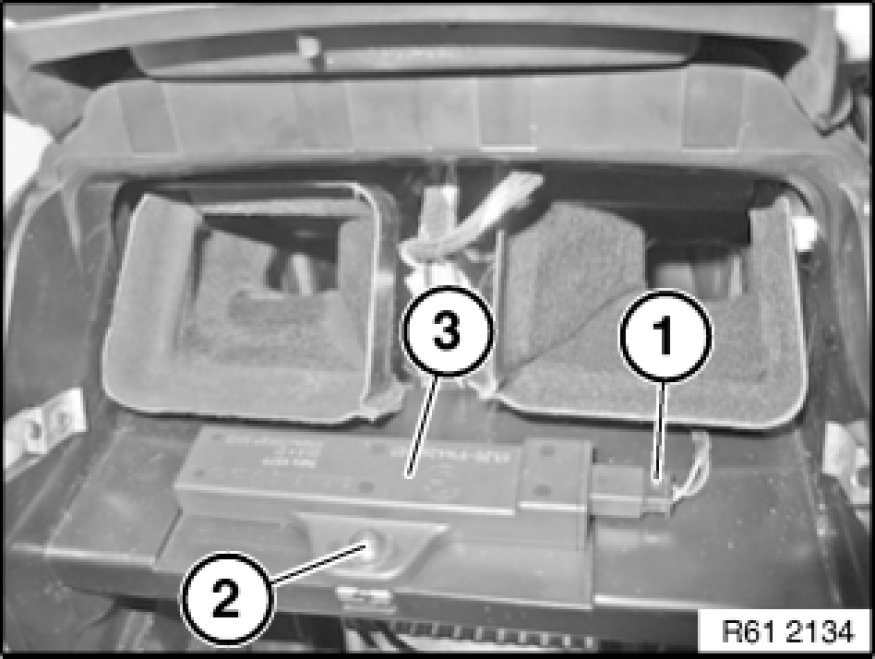

Disconnect plug connection (1).
Release screw (2) and remove interior aerial for comfort access system (3).
